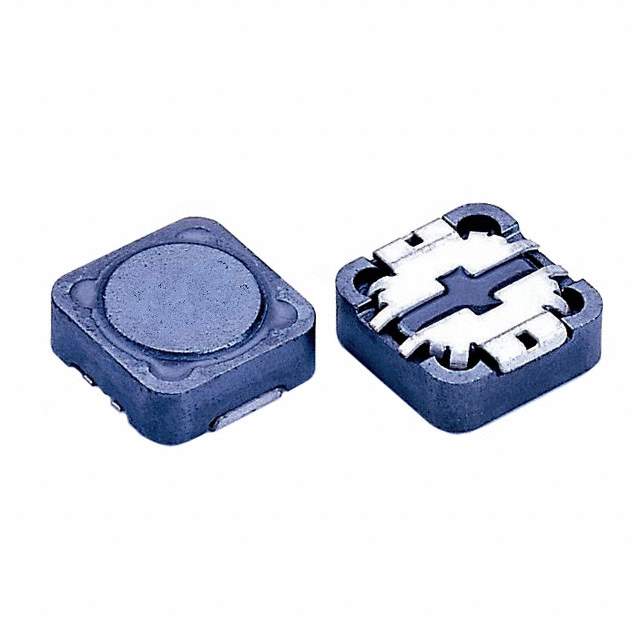

SCRH124-101

Part No SCRH124-101
Manufacturer Signal Transformer
Catalog Fixed Inductors
Description FIXED IND 100UH 1.36A 308MOHM SM  /  100 µH Shielded Inductor 1.36 A 308mOhm Max Nonstandard
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Signal Transformer
Series SCRH124
Package Tape & Reel
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 1.36 A
Current - Saturation (Isat) 1.2A
Shielding Shielded
DC Resistance (DCR) 308mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 595-1434-6,SCRH124101,SCRH124-101M,595-1434-1,595-1434-2
Standard Package 500
Win Source Part Number 1118144-SCRH124-101
Ultra Librarian 3D Model Ultra Librarian SCRH124-101 CAD Model

Description

The SCRH124-101 is a fixed inductor designed by Signal Transformer.

  • Package: Non-Standard
  • Standard Package: 500
  • Tolerance: ±20%
  • Maximum DC Resistance (DCR): 308mOhm
