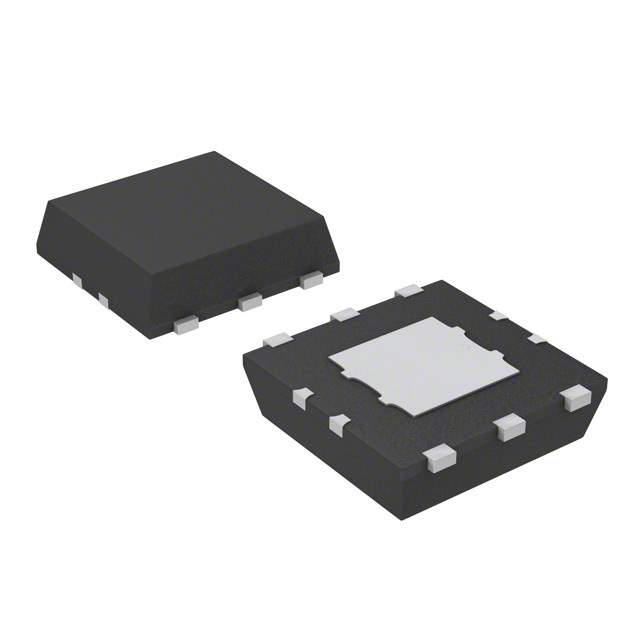

S-1170B25PD-OTK-TF Real Image
Same model may have multiple batches, images only for reference.

S-1170B25PD-OTK-TF

Part No S-1170B25PD-OTK-TF
Manufacturer SII Semiconductor Corporation
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 0.8A 6HSON
Datasheet
S-1170B25PD-OTK-TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer SII Semiconductor Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 6.5V
Nominal Output Voltage (Min/Fixed) 2.5V
Dropout Voltage-Max 0.22V @ 300mA
Output Current 800mA
Operating Supply Current 160μA
PSRR 70dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 2.5V
Voltage - Dropout (Typical) 0.15V @ 300mA
Mounting SMD (SMT)
Case / Package 6-HSON (A) (2.9x2.8)
Win Source Part Number 062936-S-1170B25PD-OTK-TF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S-1170B25PD-OTK-TF CAD Model

Description

The SII Semiconductor Corporation 062936-S-1170B25PD-OTK-TF is an obsolete (EOL) integrated circuit with a positive fixed regulator topology.

  • Dropout Voltage (typical): 0.15V @ 300mA
  • Output Current: 800mA
  • Output Type: Fixed
  • Control Feature: Enable
  • Case/Package: 6-HSON (A) (2.9x2.8)
  • Maximum Input Voltage: 6.5V
  • Nominal Output Voltage: 2.5V
  • Maximum Dropout Voltage: 0.22V @ 300mA
  • Operating Supply Current: 160μA
  • PSRR: 70dB (1kHz)
  • Protection Features: Over current and over temperature
