The CP2102N-EK is an evaluation kit for the CP2102N USB-to-UART bridge from Silicon Labs. It provides a complete platform for evaluating and developing USB connectivity solutions. The CP2102N is a highly integrated USB-to-UART bridge controller that simplifies the process of adding USB to existing or new designs. The evaluation kit allows developers to quickly prototype and test the functionality of the CP2102N without having to design a custom PCB.

Applications


• USB-to-UART conversion

• Serial communication

• Prototyping USB connectivity solutions

• Evaluating the CP2102N USB-to-UART bridge

• Debugging and testing serial communication devices

Features


• CP2102N USB-to-UART Bridge: Features Silicon Labs' highly integrated USB-to-UART bridge controller.

• USB 2.0 Full-Speed Compatible: Complies with the USB 2.0 Full-Speed (12 Mbps) specification.

• Integrated USB Transceiver: Includes an integrated USB transceiver, simplifying hardware design.

• UART Interface: Provides a standard UART interface for serial communication.

• Virtual COM Port (VCP) Drivers: Supports VCP drivers for easy integration with existing applications.

• Bus-Powered Operation: Can be powered directly from the USB bus.

• Evaluation Board: Includes a PCB with the CP2102N and necessary components for evaluation.

• Test Points: Provides test points for easy access to signals.

Benefits


• Simplified USB Connectivity: Makes it easy to add USB to existing or new designs.

• Reduced Development Time: Allows developers to quickly prototype and test USB connectivity solutions.

• Cost-Effective Solution: Provides a complete platform for evaluating and developing USB solutions at a low cost.

• Easy to Use: Simple to set up and use, even for developers with limited USB experience.

• Complete Documentation: Includes comprehensive documentation to help developers get started quickly.

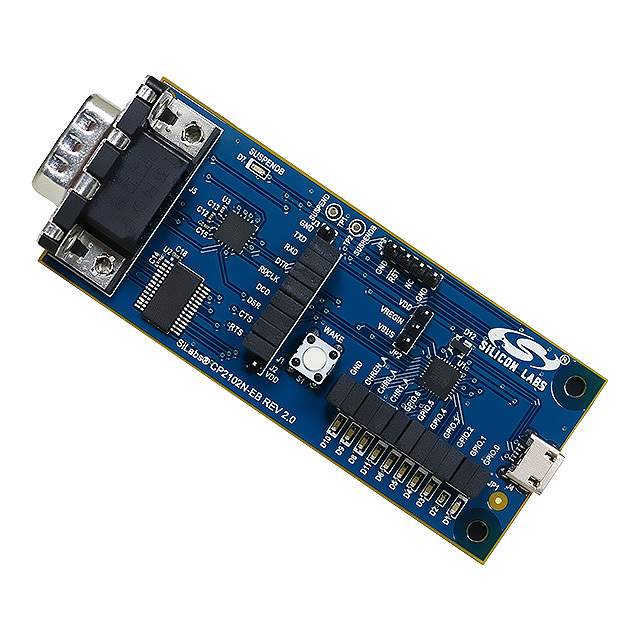

The CP2102N-EK evaluation kit typically includes the evaluation board, a USB cable, and a quick start guide. The evaluation board features the CP2102N chip, a USB connector, a UART connector, and other necessary components. The kit is supported by Silicon Labs' Simplicity Studio development environment, which provides tools for configuring and programming the CP2102N.

Specifications:

• USB Standard: USB 2.0 Full-Speed
• UART Data Rates: (Check CP2102N datasheet, typically up to 3 Mbps)
• Operating Voltage: (Check CP2102N datasheet, typically 3.0 V to 3.6 V)
• Power Supply: USB Bus Powered
• Connectors: USB Type-A, UART Header
