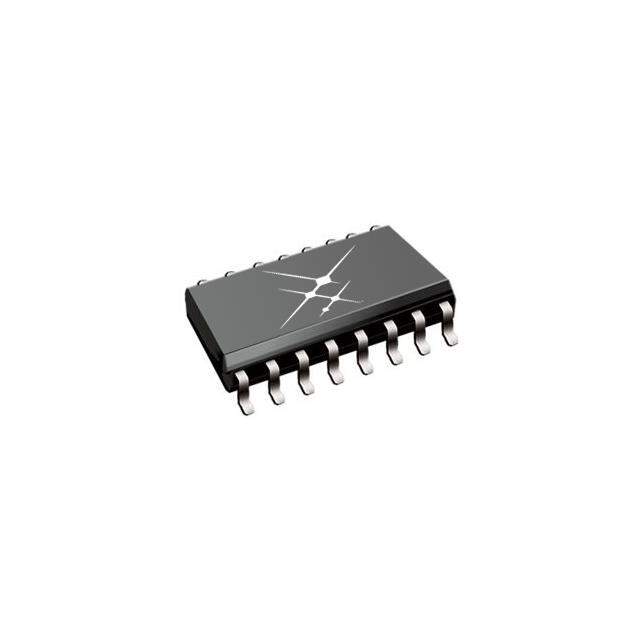

SI8234AB-C-IS1 Real Image
Same model may have multiple batches, images only for reference.

SI8234AB-C-IS1

Part No SI8234AB-C-IS1
Manufacturer Silicon Labs
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRVR 16SOIC / 0.5 AND 4.0 AMP ISODRIVERS (2.5 AND 5 KVRMS)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Silicon Labs
Packaging Tube
Part Status Obsolete (End Of Life)
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Propagation Delay tpLH / tpHL (Maximum) 60ns, 60ns
Pulse Width Distortion (Maximum) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Maximum)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 16-SOIC
Supplier Device Package 16-SOIC
Approvals CQC, CSA, UR, VDE
Manufacturer Pack Quantity 48
MSL Level 2A (4 Weeks)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802654-SI8234AB-C-IS1
Ultra Librarian 3D Model Ultra Librarian SI8234AB-C-IS1 CAD Model

Description

The Si8234AB-C-IS1 is a capacitive coupling technology based isolator from Silicon Labs.

  • Current Output: 2A/4A
  • Temperature Range: -40°C to 125°C
  • Channels: 2
  • Rise/Fall Time: 12ns/12ns
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity: 20kV/μs
  • Propagation Delay tpLH/tpHL: 60ns/60ns
  • Pulse Width Distortion: 5.6ns
  • Package: 16-SOIC
