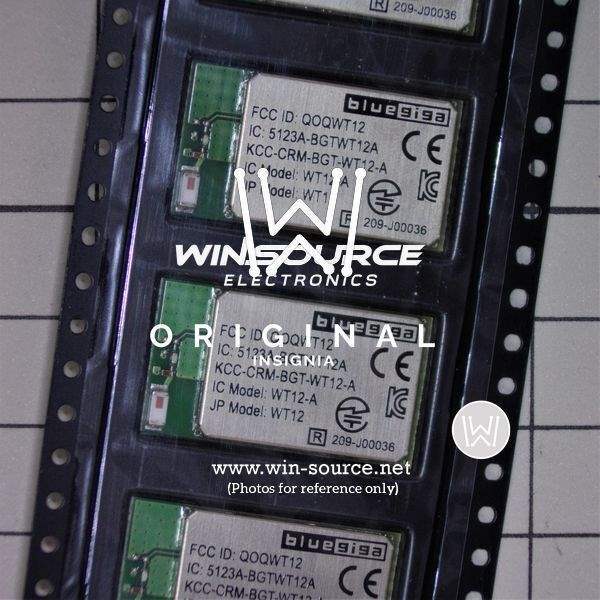

WT12-A-AI4 Real Image WT12-A-AI4 real image WT12-A-AI4 real image11677 WT12-A-AI4 real image11678
Same model may have multiple batches, images only for reference.
WT12-A-AI4 Real Image WT12-A-AI4 real image WT12-A-AI4 real image11677 WT12-A-AI4 real image11678
WT12-A-AI4 Real Image WT12-A-AI4 real image WT12-A-AI4 real image11677 WT12-A-AI4 real image11678
Same model may have multiple batches, images only for reference.

WT12-A-AI4

Part No WT12-A-AI4
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP ANT
Datasheet
WT12-A-AI4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Silicon Labs
Packaging Reel - TR
Status Active
RF Family/Standard Bluetooth
Protocol Bluetooth v2.1 + EDR, Class 2
Modulation DQPSK, GFSK
Frequency 2.4GHz
Data Rate 3Mbps
Power - Output 3dBm
Sensitivity -86dBm
Serial Interfaces PIO, SPI, UART, USB
Antenna Type Integrated, Chip
Memory Size 8MB Flash
Supply Voltage - Operating 3.1 V to 3.6 V
Current - Receiving 70mA
Current - Transmitting 70mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C
Dimension Module
Win Source Part Number 1118072-WT12-A-AI4
Family Name WT12
Introduction Date January 01, 2000
ECCN 5A992.c
Country of Origin China
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian WT12-A-AI4 CAD Model

Description

The Silicon Labs WT12-A-AI4 is a Bluetooth module with a frequency of 2.4GHz and a data rate of 3Mbps.

  • Manufacturer: Silicon Labs
  • Product Name: WT12-A-AI4
  • Frequency: 2.4GHz
  • Data Rate: 3Mbps
  • Antenna: integrated chip antenna
  • Power Output: 3dBm
  • Flash Memory: 8MB
  • Mounting: SMD (SMT) technology
  • Bluetooth Protocol: v2.1 + EDR, Class 2
  • Sensitivity: -86dBm
  • Receiving and Transmitting Current: 70mA
  • Serial Interfaces: PIO, SPI, UART, and USB
  • Operating Temperature Range: -40°C to 85°C
  • Supply Voltage: 3.1 V to 3.6 V
  • Supply and Demand Status: balance
  • EOL date: 2024
