Same model may have multiple batches, images only for reference.

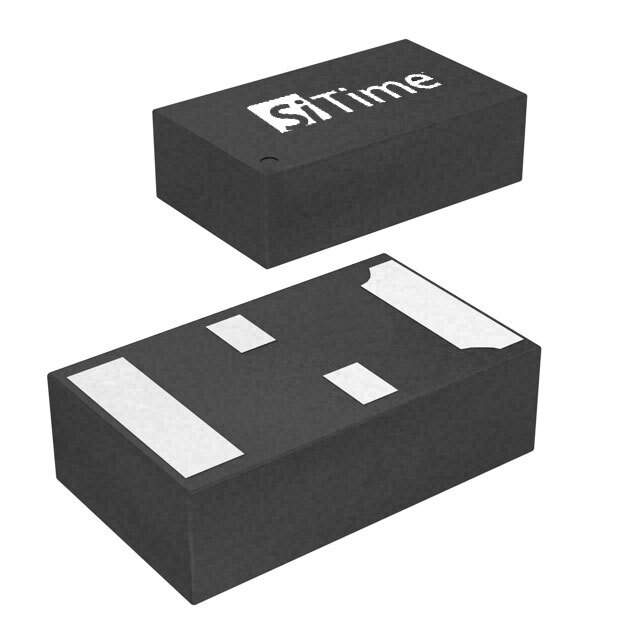

SIT1533AI-H4-DCC-32.768S Real Image
Same model may have multiple batches, images only for reference.

SIT1533AI-H4-DCC-32.768S

Part No SIT1533AI-H4-DCC-32.768S
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 32.7680KHZ LVCMOS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer SiTIME
Packaging Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 32.768kHz
Output LVCMOS
Supply Voltage (V) 1.2V ~ 3.63V
Frequency Stability ±100ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Maximum) 1.4μA
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Maximum) 0.024" (0.60mm)
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802580-SIT1533AI-H4-DCC-32.768S
Ultra Librarian 3D Model Ultra Librarian SIT1533AI-H4-DCC-32.768S CAD Model

Description

The SiTIME 802580-SIT1533AI-H4-DCC-32.768S is a crystal oscillator that operates at a frequency of 32.768kHz.

  • Frequency: 32.768kHz
  • Frequency Stability: ±100ppm
  • Current Supply: 1.4μA
  • Supply Voltage: 1.2V to 3.63V
  • Height: 0.024" (0.60mm)
  • Mounting: SMD
  • Temperature Range: -40°C to 85°C
  • Packaging: Reel
  • Quantity: 10,000 pcs
