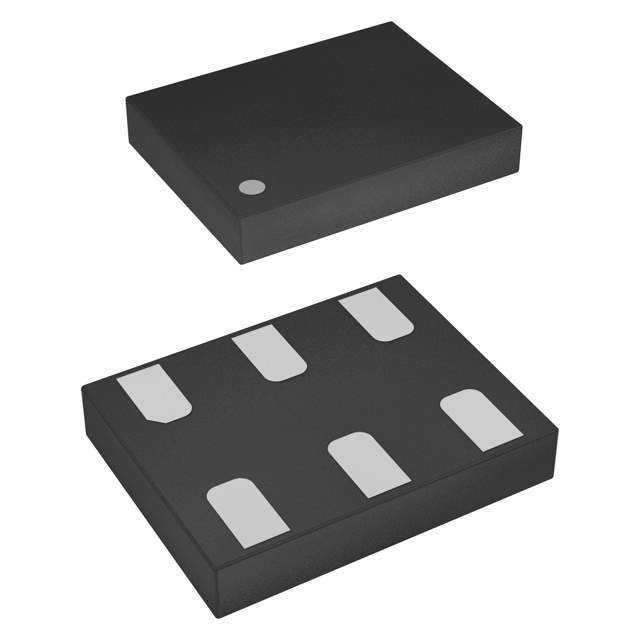

SIT9121AI-2B1-33E100.000000 Real Image1 SIT9121AI-2B1-33E100.000000 Real Image2
Same model may have multiple batches, images only for reference.
SIT9121AI-2B1-33E100.000000 Real Image1 SIT9121AI-2B1-33E100.000000 Real Image2
SIT9121AI-2B1-33E100.000000 Real Image1 SIT9121AI-2B1-33E100.000000 Real Image2
Same model may have multiple batches, images only for reference.

SIT9121AI-2B1-33E100.000000

Part No SIT9121AI-2B1-33E100.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 100.0000MHZ LVDS SMD / 100 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
SIT9121AI-2B1-33E100.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTIME
Series SiT9121
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±20ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 55mA
Ratings -
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 35mA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1 pcs
Win Source Part Number 1383454-SIT9121AI-2B1-33E100.000000
Ultra Librarian 3D Model Ultra Librarian SIT9121AI-2B1-33E100.000000 CAD Model

Description

The SiT9121AI-2B1-33E100.000000 is a crystal oscillator (XO) with a frequency of 100MHz. It is part of the SiT9121 series and is designed for use in various electronic devices, including communication equipment, industrial control systems, and consumer electronics.

  • Voltage Supply: 3.3V
  • Current Supply: 55mA
  • Output: LVDS
  • Frequency Stability: ±20ppm
  • Mounting Type: Surface Mount
  • Package: 6-SMD, no lead
  • Operating Temperature: -40°C to 85°C
  • Height: 0.031" (0.80mm)
