Same model may have multiple batches, images only for reference.

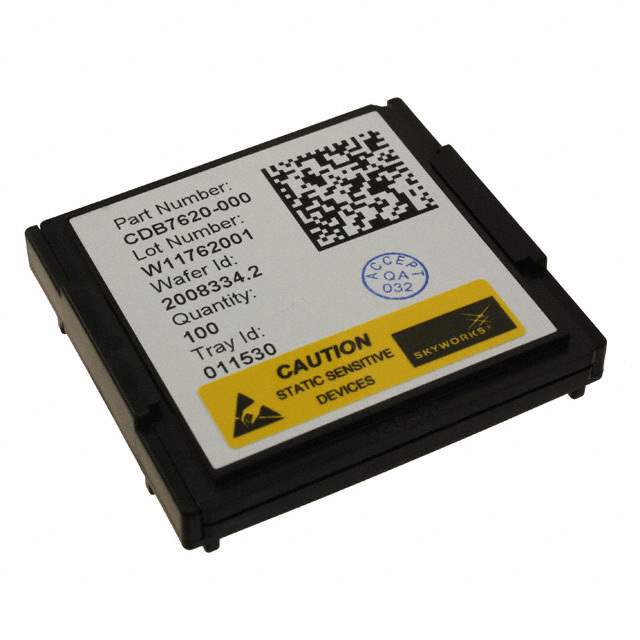

CDB7620-000 Real Image
Same model may have multiple batches, images only for reference.

CDB7620-000

Part No CDB7620-000
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description RF DIODE SCHOTTKY 2V CHIP  /  RF Diode Schottky - Single 2V Chip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr Skyworks Solutions Inc.
Package Bulk
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 2V
Capacitance @ Vr, F 0.15pF @ 0V, 10MHz
Resistance @ If, F 30Ohm @ 10mA, 10MHz
Package / Case Die
Supplier Device Package Chip
Base Product Number CDB7620
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names 863-1208,CDB7620000
Standard Package 100
Win Source Part Number 992172-CDB7620-000
Ultra Librarian 3D Model Ultra Librarian CDB7620-000 CAD Model

Description

The CDB7620-000 manufactured by Skyworks Solutions Inc. is a discrete semiconductor product that comes in a bulk packaging format.

  • Diode Type: Schottky-single
  • Voltage-Peak Reverse: 2V (Max)
  • Resistance @ If, F: 30Ohm @ 10mA, 10MHz
  • Capacitance @ Vr, F: 0.15pF @ 0V, 10MHz
