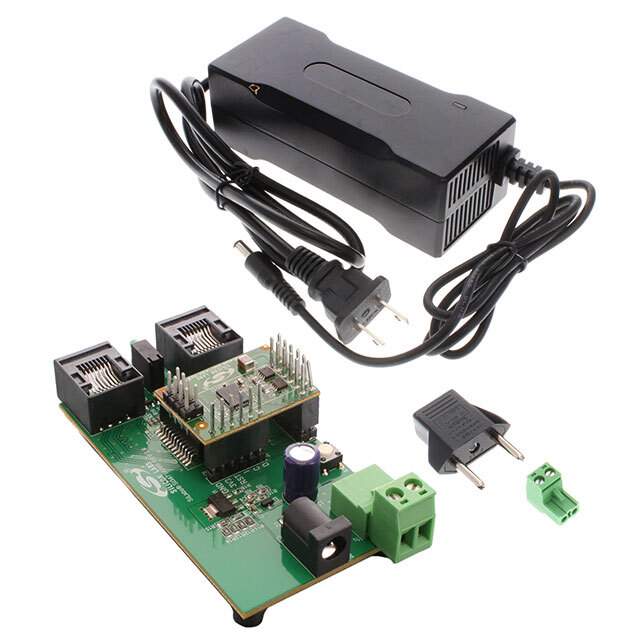

The SI3471-KIT is an evaluation kit designed to demonstrate the capabilities of the Si3471 Power over Ethernet (PoE) Powered Device (PD) controller from Skyworks Solutions. This kit allows designers to quickly and easily evaluate the performance and features of the Si3471 in a real-world application.

Applications:

• IP Phones
• IP Cameras
• Wireless Access Points
• IoT Devices
• Industrial Automation
• PoE Lighting

Features:

• Evaluation board for Si3471 PoE PD controller
• Includes all necessary components for a functional PoE PD circuit
• Supports IEEE 802.3at (PoE+) standard
• Provides multiple test points for performance measurement
• LED indicators for power and status
• On-board DC-DC converter
• Overload protection

Benefits:

• Simplifies the evaluation of the Si3471 PoE PD controller
• Reduces development time and costs
• Allows for easy performance testing and optimization
• Provides a reference design for PoE PD applications
• Enables rapid prototyping

Additional Details:

The SI3471 is a highly integrated PoE PD controller that supports the IEEE 802.3af and 802.3at standards. It includes all the necessary functions for a PoE PD, including detection, classification, and power control. The device features a high-efficiency DC-DC converter that provides a regulated output voltage from the PoE input. The evaluation kit includes all the necessary components for a functional PoE PD circuit, including the Si3471 controller, DC-DC converter, and passive components.

The SI3471-KIT is an essential tool for designers who want to evaluate the Si3471 PoE PD controller. It simplifies the evaluation process and allows for rapid prototyping of PoE PD applications. The kit includes all the necessary components and test points, making it easy to measure the performance of the Si3471 in a real-world environment.
