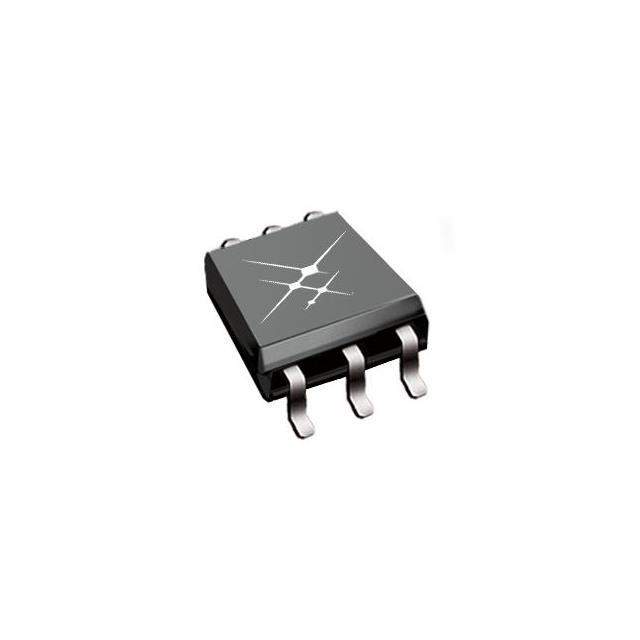

SI8710BD-B-IS Real Image
Same model may have multiple batches, images only for reference.

SI8710BD-B-IS

Part No SI8710BD-B-IS
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - Power Management - Specialized
Description DGTL ISO 5000VRMS 1CH GP 6DIP GW / General Purpose Digital Isolator 5000Vrms 1 Channel 15Mbps 35kV/µs CMTI 6-SOIC (0.295", 7.50mm Width)
Datasheet
SI8710BD-B-IS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Digital Isolators
Mfr Skyworks Solutions Inc.
Package Tube
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Channel Type Unidirectional
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Data Rate 15Mbps
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 20ns
Rise / Fall Time (Typ) 15ns, 5ns
Voltage - Supply 3V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SDIP Gull Wing
Base Product Number SI8710
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 336-2377,SI8710BDBIS
Standard Package 100
Win Source Part Number 1092980-SI8710BD-B-IS
Ultra Librarian 3D Model Ultra Librarian SI8710BD-B-IS CAD Model

Description

The SI8710BD-B-IS is a general-purpose digital isolator from Skyworks Solutions Inc.

  • Technology: Capacitive coupling
  • Data Rate: 15Mbps
  • Channel Type: Unidirectional
  • Rise/Fall Time (typical): 15ns and 5ns
  • Channels: 1
  • Voltage Isolation: 5000Vrms
  • Input on Side 1/Side 2: 1/0
  • Propagation Delay tpLH/tpHL (Max): 60ns
  • Pulse Width Distortion (Max): 20ns
  • Isolated Power: No
  • Voltage Supply: 3V to 30V
  • Package/Case: 6-SOIC (0.295", 7.50mm Width)
  • Temperature Range: -40°C to 125°C
  • Cross-referenced Parts: BH30MA3WHFV-TR, BH33MA3WHFV-TR, BD00IC0WHFV-GTR, NCP694HSANADJT1G, NCP694HSAN33T1G, and LM34904ITMX/NOPB
  • MSL Level: 3 (168 Hours)
  • HTSUS: 8542.39.0001
