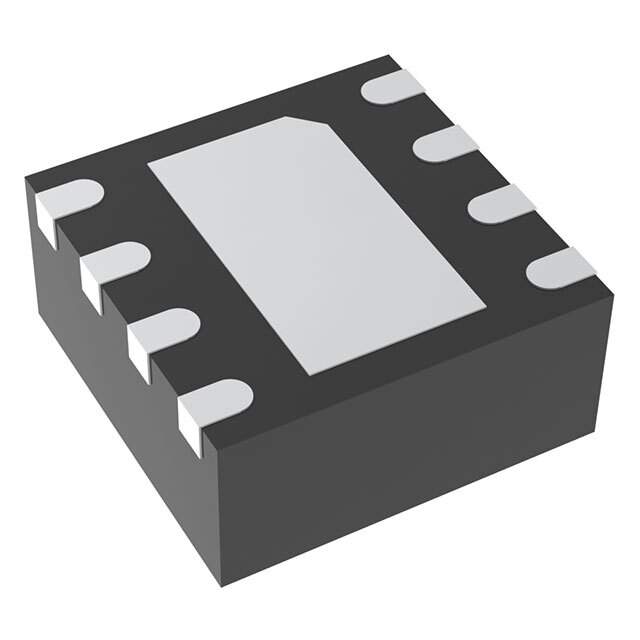

SKY13298-360LF Real Image SKY13298-360LF Real Image
Same model may have multiple batches, images only for reference.
SKY13298-360LF Real Image SKY13298-360LF Real Image
SKY13298-360LF Real Image SKY13298-360LF Real Image
Same model may have multiple batches, images only for reference.

SKY13298-360LF

Part No SKY13298-360LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC SW SP2T 3.0-8GHZ GASS 8QFN
Datasheet
SKY13298-360LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel
Part Status Active
Frequency - Lower 3GHz
Frequency - Upper 8GHz
Isolation @ Frequency 22dB @ 7.92GHz
Insertion Loss @ Frequency 0.9dB @ 7.92GHz
IIP3 42dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 24dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type UWB
Case 8-VFDFN Exposed Pad
Supplier Device Package 8-QFN (2x2)
Win Source Part Number SKY13298-360LF-324751
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SKY13298-360LF CAD Model

Description

The SKY13298-360LF-324751 by Skyworks Solutions Inc. is a reflective SPDT circuit with an impedance of 50 Ohm.

  • Circuit Type: Reflective SPDT
  • Impedance: 50 Ohm
  • Frequency Range: 3GHz to 8GHz
  • Isolation: 22dB @ 7.92GHz
  • Insertion Loss: 0.9dB @ 7.92GHz
  • IIP3: 42dBm (typ)
  • P1dB: 24dBm (typ) IP1dB
  • RF Type: UWB
  • Package: 8-QFN (2x2) with an exposed pad
  • Temperature Range: -40°C ~ 85°C
