Same model may have multiple batches, images only for reference.

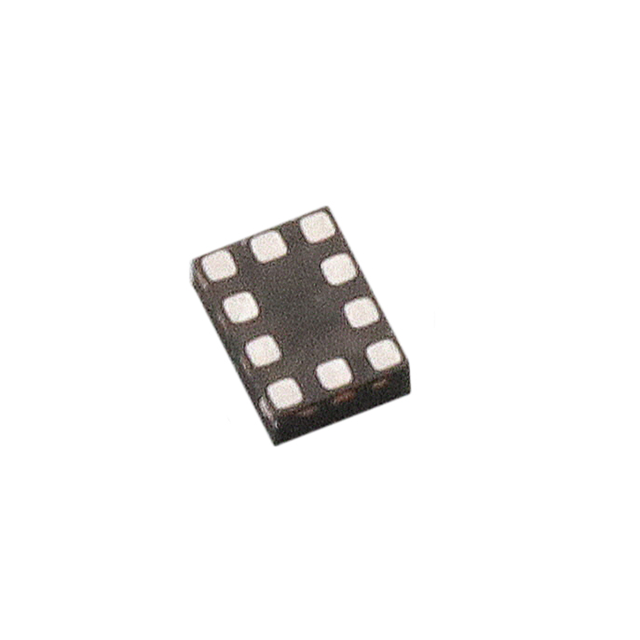

SKY19245-686LF Real Image
Same model may have multiple batches, images only for reference.

SKY19245-686LF

Part No SKY19245-686LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description SP4T 45V PACKAGED TUNNING SWITCH / 0.1 to 2.7 GHz SP4T High-Power Antenna Tuning Switch in a QFN Package
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Skyworks Solutions Inc.
Packaging Reel
RF Type General Purpose
Circuit SP4T
Frequency Range 100MHz ~ 2.7GHz
Features DC Blocked
Manufacturer Package 10-XFQFN Exposed Pad
Supplier Device Package 10-QFN (1.5x1)
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807031-SKY19245-686LF
Ultra Librarian 3D Model Ultra Librarian SKY19245-686LF CAD Model

Description

The SKY19245-686LF is an SP4T general-purpose switch circuit designed for use in RF applications, manufactured by Skyworks Solutions Inc.

  • Frequency Range: 100MHz to 2.7GHz
  • DC Blocked: Yes
  • Supplier Device Package: 10-QFN (1.5x1)
  • Manufacturer Package: 10-XFQFN exposed pad
  • Popularity: Medium
  • Supply Voltage: -V
  • Packaging: Reel, 5000 pieces
