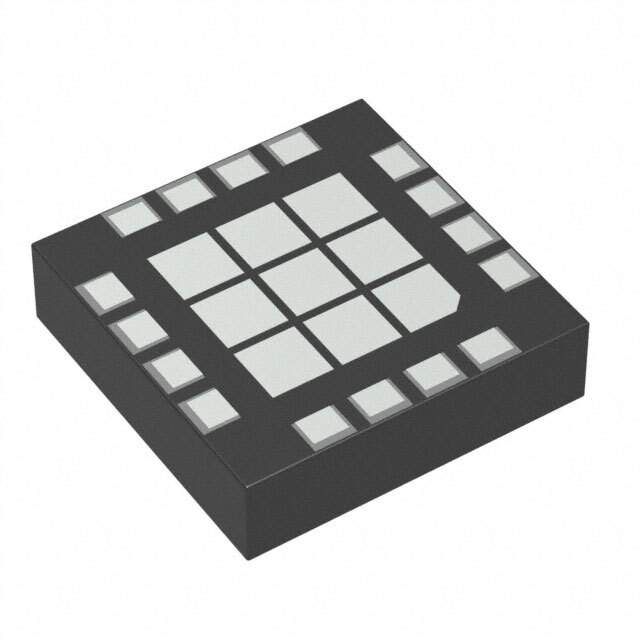

SKY66317-11

Part No SKY66317-11
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description IC AMP 4G/5G 2.496-2.69GHZ 16MCM
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Skyworks Solutions Inc.
Series -
Package Tape & Reel
Product Status Active
Frequency 2.496GHz ~ 2.69GHz
P1dB 35dBm
Gain 36.5dB
Noise Figure -
RF Type 4G/5G, LTE
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 90mA
Test Frequency 2.593GHz
Mounting Type Surface Mount
Package / Case 16-SMD Module
Supplier Device Package 16-MCM (5x5)
Base Product Number SKY66317
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1373230-SKY66317-11
Ultra Librarian 3D Model Ultra Librarian SKY66317-11 CAD Model

Description

The SKY66317-11 is an RF amplifier module from Skyworks Solutions Inc. It is designed for 4G/5G and LTE applications and operates in a frequency range of 2.496GHz to 2.69GHz.

  • Application: 4G/5G, LTE
  • Frequency: 2.496GHz ~ 2.69GHz
  • Gain: 36.5dB
  • P1dB: 35dBm
  • Voltage - Supply: 4.75V ~ 5.25V
  • Current - Supply: 90mA
  • Package / Case: 16-SMD Module
  • Mounting Type: Surface Mount
