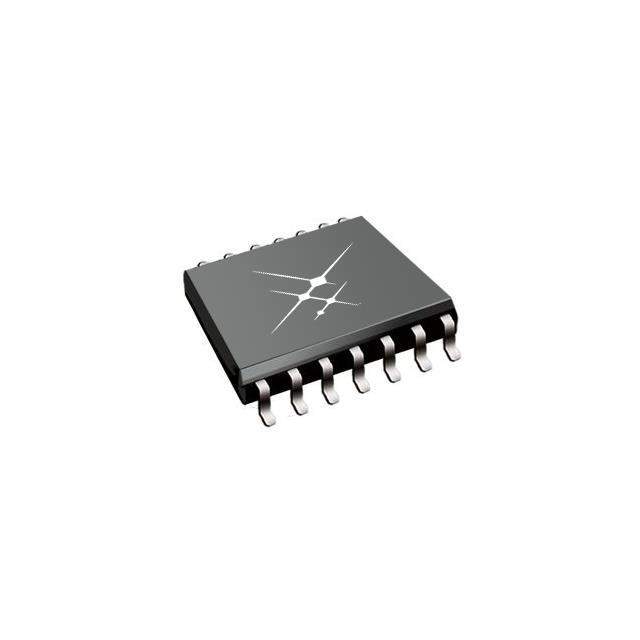

SI8230BD-D-IS3 Real Image
Same model may have multiple batches, images only for reference.

SI8230BD-D-IS3

Part No SI8230BD-D-IS3
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description ISOLATED GATE DRIVER, 8 MM CREEP / 500mA Gate Driver Capacitive Coupling 5000Vrms 2 Channel 14-SOIC
Datasheet
SI8230BD-D-IS3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 45kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 20ns, 20ns
Current - Output High, Low 250mA, 500mA
Current - Peak Output 500mA
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-SOIC (0.295", 7.50mm Width)
Supplier Device Package 14-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8230
Other Names 336-4257
Standard Package 46
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243537-SI8230BD-D-IS3
Ultra Librarian 3D Model Ultra Librarian SI8230BD-D-IS3 CAD Model

Description

The SI8230BD-D-IS3 is an isolator gate driver designed for automotive applications.

  • Number of Channels: two
  • Voltage Isolation: 5000Vrms
  • Common Mode Transient Immunity: 45kV/μs
  • Propagation Delay: 60ns
  • Peak Output Current: 500mA
  • Pulse Width Distortion: 5.6ns
  • Operating Temperature: -40℃ to 125℃
  • Compliance: AEC-Q100
  • Approvals: CQC, CSA, UR, and VDE
