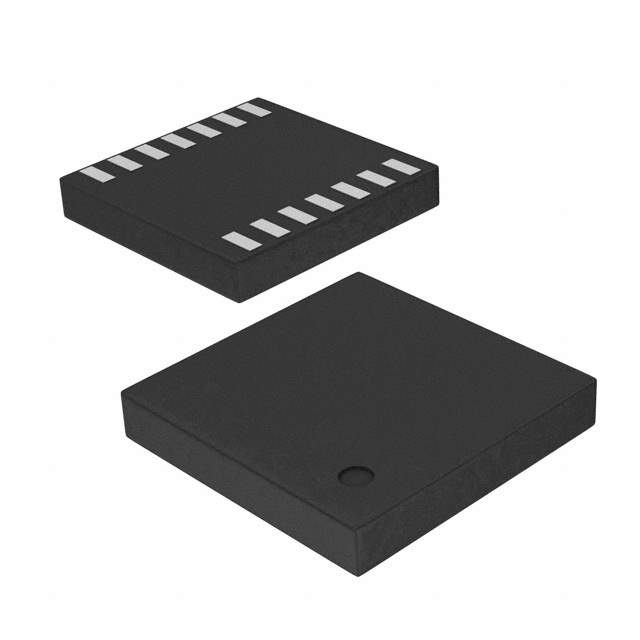

SI8236BA-D-IM Real Image
Same model may have multiple batches, images only for reference.

SI8236BA-D-IM

Part No SI8236BA-D-IM
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 1KV 2CH GATE DRVR 14LGA / 4A Gate Driver Capacitive Coupling 1000Vrms 2 Channel 14-LGA (5x5)
Datasheet
SI8236BA-D-IM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Product Status Obsolete
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 1000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (5x5)
Approval Agency CQC, CSA, UR, VDE
Standard Package 60
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243524-SI8236BA-D-IM
Ultra Librarian 3D Model Ultra Librarian SI8236BA-D-IM CAD Model

Description

The Skyworks Solutions Inc. SI8236BA-D-IM isolator is a gate driver designed for use in automotive applications.

  • Compliance: AEC-Q100 compliant
  • Packaging: Tube
  • Standard Package: 60
  • Mounting: SMD (SMT) mounted
  • Technology: Capacitive coupling technology
  • High Output Current: 2A
  • Low Output Current: 4A
  • Voltage Isolation: 1000Vrms
  • Common Mode Transient Immunity: 20kV/µs
  • Propagation Delay: 60ns (maximum)
  • Pulse Width Distortion: 5.6ns
