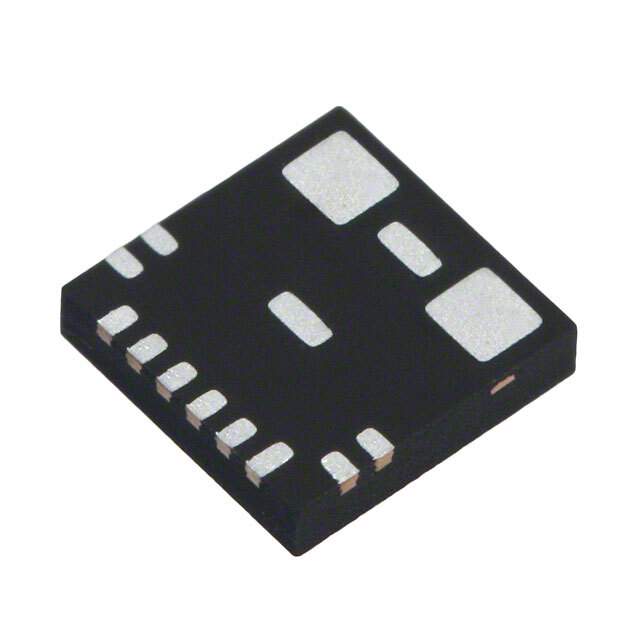

SI8506-B-IM

Get a Quote

Part No	SI8506-B-IM
Manufacturer	Skyworks Solutions Inc.
Catalog	Current Transducers
Description	SENSOR CURRENT XFMR 20A AC / Current Sensor 20A 1 Channel Transformer w/Conditioning Unidirectional 12-VFQFN
Datasheet	SI8506-B-IM Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Current Sensors
Mfr	Skyworks Solutions Inc.
Package	Tube
Product Status	Obsolete
For Measuring	AC
Sensor Type	Transformer w/Conditioning
Current - Sensing	20A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	98mV/A
Frequency	50kHz ~ 1MHz
Accuracy	±5%
Voltage - Supply	2.7V ~ 5.5V
Current - Supply (Max)	7mA
Temperature Range - Operating	-40°C ~ 125°C
Polarization	Unidirectional
Mounting	SMD (SMT)
Package / Case	12-VFQFN
Supplier Device Package	12-QFN (4x4)
Other Names	336-1418-5
Standard Package	74
MSL Level	2 (1 Year)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1235482-SI8506-B-IM
Ultra Librarian 3D Model	Ultra Librarian SI8506-B-IM CAD Model

Alternative Products

Description

This current sensor is manufactured by Skyworks Solutions Inc. and the Win Source part number is 1235482-SI8506-B-IM.

Packaging: Tube
Output: Ratiometric, Voltage
Polarization: Unidirectional
For Measuring: AC
Sensor Type: Transformer w/Conditioning
Current-Sensing: 20A
Sensitivity: 98mV/A
Voltage-Supply: 2.7V ~ 5.5V
Package / Case: 12-VFQFN
Supplier Device Package: 12-QFN (4x4)
Operating Temperature: -40°C ~ 125°C
MSL Level: 2 (1 Year)
HTSUS: 8542.39.0001
Other Name: 336-1418-5
Product Status: Obsolete
