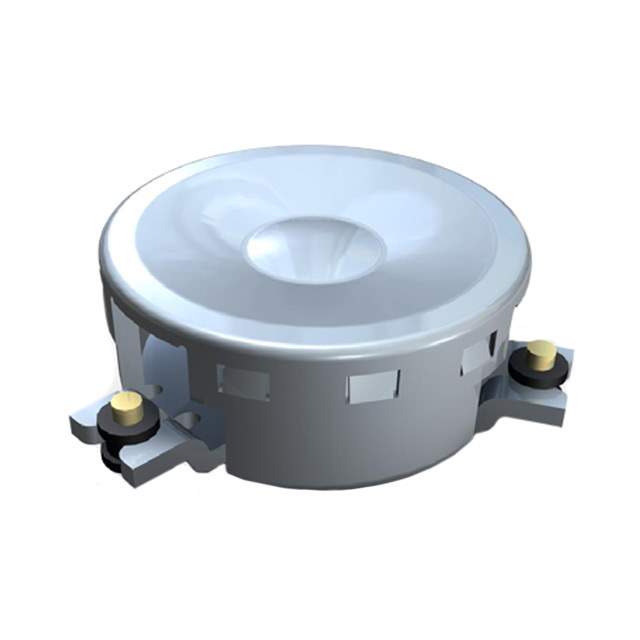

SKYFR-001460 Real Image
Same model may have multiple batches, images only for reference.

SKYFR-001460

Part No SKYFR-001460
Manufacturer Skyworks Solutions Inc.
Catalog RF Circulators and Isolators
Description 2620-2690 MHZ SMT ISOLATOR
Datasheet
SKYFR-001460 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Circulators and Isolators
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Type Isolator
Frequency 2.62 GHz ~ 2.69 GHz
Isolation 20dB (Min)
Power - Average Forward 20 W
Insertion Loss 0.25dB (Max)
Connector Type SMT
Package / Case Module
Other Names 863-1975-2,3569-SKYFR-001460TR,3569-SKYFR-001460DKR,3569-SKYFR-001460CT,863-1975-6,863-1975-2,863-1975-1,863-1975-6,863-1975-1
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8517.79.0000
Win Source Part Number 1236164-SKYFR-001460
Ultra Librarian 3D Model Ultra Librarian SKYFR-001460 CAD Model

Description

The Skyworks Solutions Inc. RF Circulators and Isolators product with the Win Source part number 1236164-SKYFR-001460 is a type of isolator with a frequency range of 2.62 GHz to 2.69 GHz.

  • Insertion Loss: 0.25dB (Max)
  • Isolation: 20dB (Min)
  • Package/Case: module
  • Standard Package: 200
  • MSL level: 1 (Unlimited)
  • HTSUS: 8517.79.0000
  • Power Average Forward: 20 W
