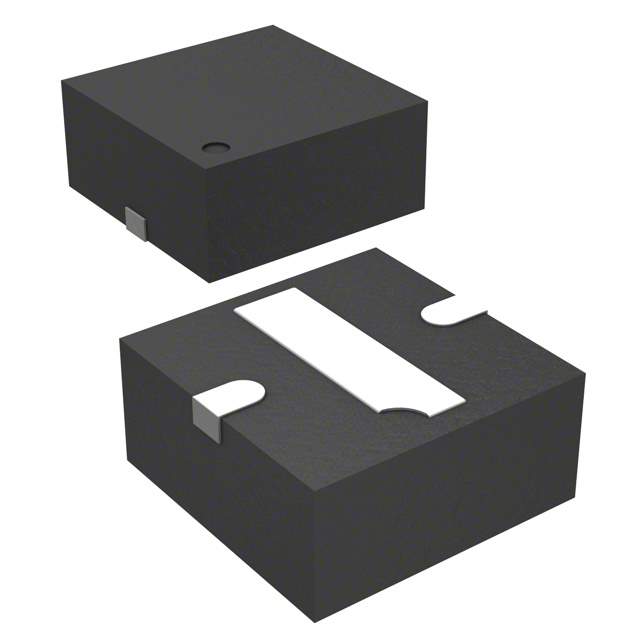

SMP1302-085LF Real Image
Same model may have multiple batches, images only for reference.

SMP1302-085LF

Part No SMP1302-085LF
Manufacturer Skyworks Solutions Inc.
Catalog RFFETs
Description RF DIODE PIN 200V 3W 3QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 12 Weeks
Features RF Diode PIN - Single 200V 1.5 A 3 W 3-QFN (2x2)
Manufacturer Skyworks Solutions Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 150°C (TA)
Package 2-VDFN Exposed Pad
Case / Package 3-QFN (2x2)
Family Name SMP1302
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number 863-1146-1, 863-1146-2, SMP1302085LF, 1287-SMP1302-085LF, 863-1146-6
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 896272-SMP1302-085LF
Ultra Librarian 3D Model Ultra Librarian SMP1302-085LF CAD Model

Description

The SMP1302-085LF is an RF diode with a voltage rating of 200 V and a current rating of 1.5 A.

  • Voltage Rating: 200 V
  • Current Rating: 1.5 A
  • Power Rating: 3 W
  • Package Type: 2-VDFN exposed pad
  • Operating Temperature Range: -40°C to 150°C
