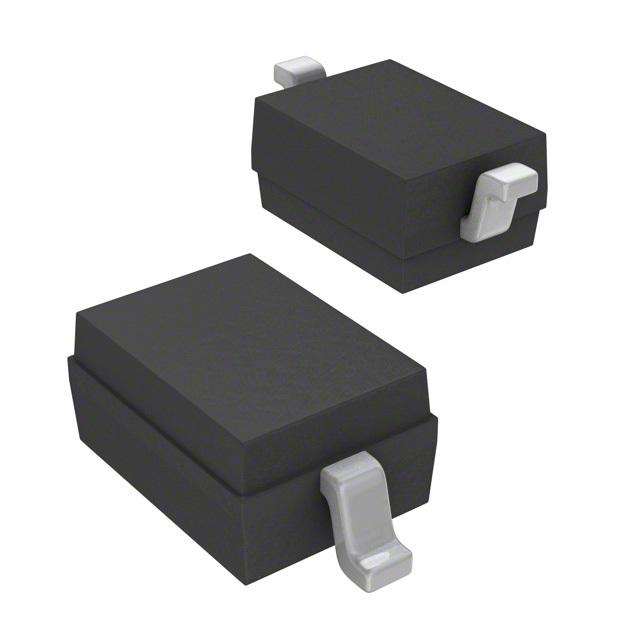

The SMV1255-011LF is a silicon PIN diode manufactured by Skyworks Solutions Inc., primarily designed for RF and microwave switching and attenuation applications. The 'LF' suffix indicates that the component is lead-free, complying with RoHS environmental standards. This diode offers low insertion loss and high isolation, making it suitable for use in demanding communication systems and radar applications.

Applications:

• RF Switches: Used in switching circuits for signal routing.
• Attenuators: Employed in attenuator circuits for controlling signal levels.
• Phase Shifters: Can be used in phase shifting networks.
• Radar Systems: Utilized in transmit/receive (T/R) switches.
• Wireless Communication Systems: Found in base stations and mobile devices for signal control.

Features:

• Low Insertion Loss: Minimizes signal attenuation when the diode is conducting.
• High Isolation: Provides excellent signal blocking when the diode is in the off state.
• Fast Switching Speed: Enables rapid switching between on and off states.
• Surface Mount Package: Simplifies PCB assembly and allows for compact designs.
• Lead-Free (RoHS Compliant): Complies with environmental regulations regarding lead content.

Benefits:

• Improved System Performance: Low insertion loss and high isolation enhance overall system efficiency.
• Precise Signal Control: Allows for accurate control of RF signal levels.
• Reduced Power Consumption: Efficient switching minimizes power dissipation.
• Compact Design: Surface mount package enables miniaturization of circuit designs.
• Environmentally Friendly: Lead-free construction complies with RoHS standards.

The SMV1255-011LF is fabricated using silicon PIN diode technology, which ensures excellent RF performance. Its low capacitance and series resistance contribute to its low insertion loss and high isolation. The device is housed in a small surface mount package, making it suitable for high-density circuit designs. Skyworks provides detailed datasheets that include comprehensive electrical specifications and application information to assist designers in effectively utilizing the SMV1255-011LF. The diode's consistent performance and reliability make it suitable for use in critical applications where precise control of RF signals is essential. It is designed to operate over a wide temperature range, ensuring reliable performance under various environmental conditions. This PIN diode is a versatile component for RF and microwave engineers designing circuits that require switching and attenuation functions, while also adhering to environmental regulations.
