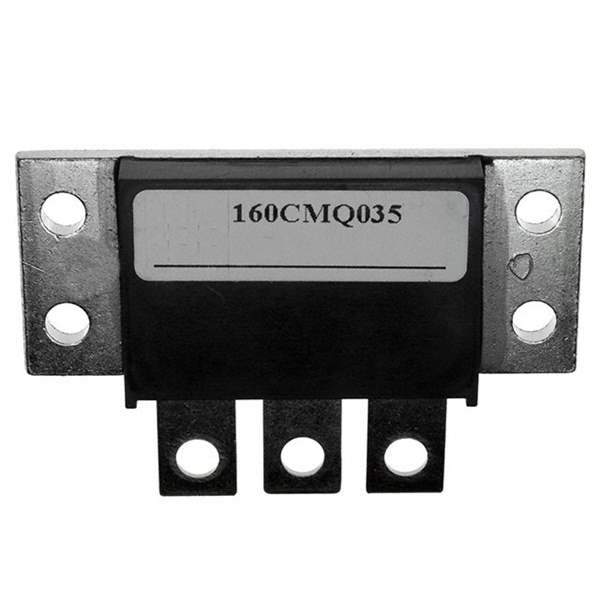

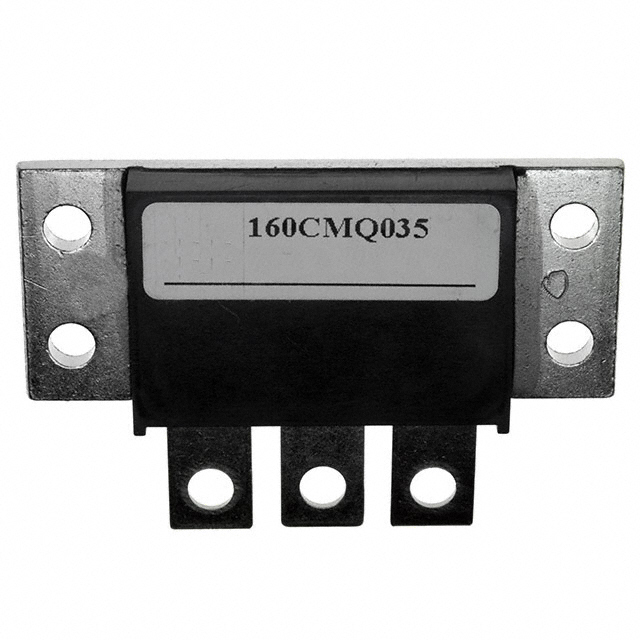

160CMQ035 SMC Diode Solutions
Same model may have multiple batches, images only for reference.

160CMQ035

Part No 160CMQ035
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 35V 80A TO249AA
Datasheet
160CMQ035 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 35V
Current - Average Rectified (Io) (per Diode) 80A
Voltage - Forward (Vf) (Maximum) @ If 860mV @ 80A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 35V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Chassis Mount
Package TO-249AA
Manufacturer Package TO-249AA
Win Source Part Number 760534-160CMQ035
Popularity Medium
Supply and Demand Status Limited
Family Name 160CMQ035
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 160CMQ035 CAD Model

Description

The SMC Diode Solutions 760534-160CMQ035 is a fast recovery Schottky diode from SMC Diode Solutions.

  • Current Rating: 80A
  • Voltage Rating: 35V
  • Package: TO-249AA
  • Diode Configuration: 1 pair common cathode
  • Mounting: Chassis
  • Applications: Discrete Semiconductor Products
  • Operating Temperature: -55°C to 150°C
  • Supply and Demand Status: Limited
