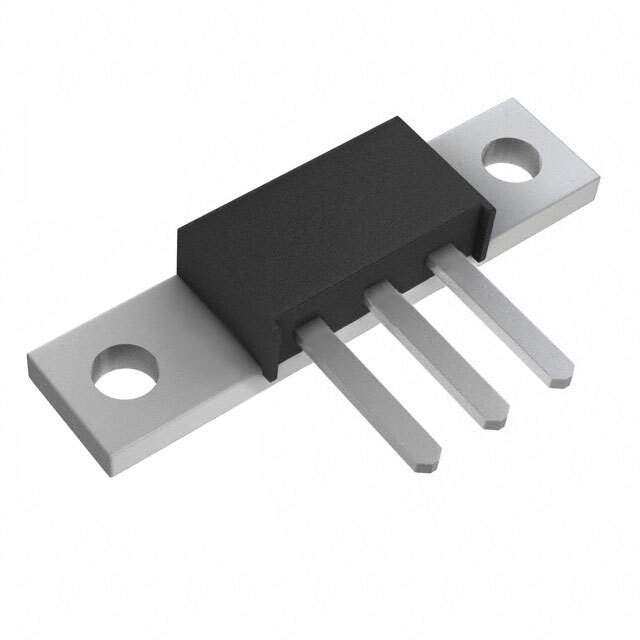

The 80CNQ045 is a Schottky Rectifier array from SMC Diode Solutions. It consists of two Schottky diodes in a common cathode configuration. These diodes are designed for high-efficiency rectification and low forward voltage drop, making them suitable for applications requiring fast switching and minimal power loss.

Applications

• Switching Power Supplies: Used in power supplies to rectify AC voltage into DC voltage efficiently.
• DC-DC Converters: Implemented in DC-DC converters for voltage regulation and power conversion.
• Freewheeling Diodes: Employed as freewheeling diodes in inductive load circuits to protect switching devices.
• Reverse Polarity Protection: Used to prevent damage from reverse polarity connections.
• Solar Power Systems: Utilized in solar panel systems for efficient power conversion.

Features

• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• High Surge Current Capability: Withstands high surge currents without damage.
• Fast Switching Speed: Enables efficient operation in high-frequency circuits.
• High-Temperature Operation: Suitable for use in high-temperature environments.
• Common Cathode Configuration: Simplifies circuit design and reduces component count.

Benefits

• Increased Efficiency: Low forward voltage drop reduces power dissipation.
• Improved Reliability: High surge current capability enhances robustness.
• Enhanced Performance: Fast switching speed enables efficient operation in high-frequency applications.
• Greater Thermal Stability: High-temperature operation allows for use in demanding environments.
• Simplified Circuit Design: Common cathode configuration streamlines circuit layout.

Technical Specifications

The 80CNQ045 typically features a maximum repetitive peak reverse voltage (VRRM) of 45V, an average forward current (IF(AV)) of 40A (20A per diode), and a forward voltage drop (VF) of approximately 0.6V. It also has a high surge current capability. Detailed specifications can be found in the SMC Diode Solutions datasheet for this rectifier array.
