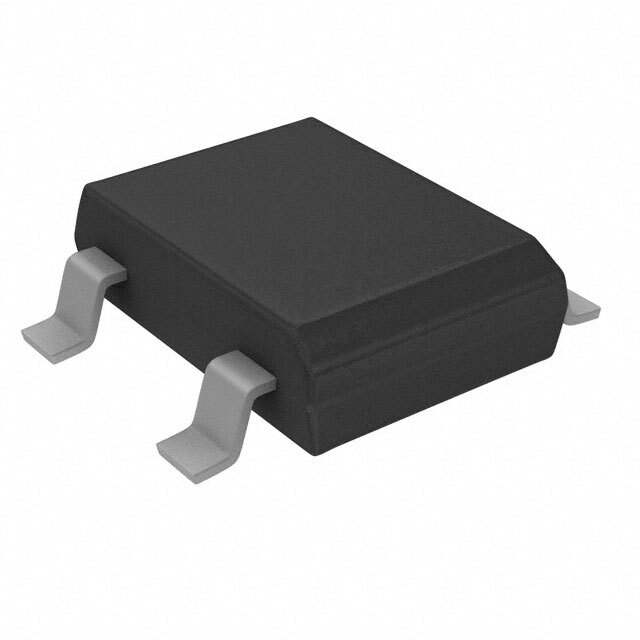

DB157S Real Image
Same model may have multiple batches, images only for reference.

DB157S

Part No DB157S
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 1.5A DB-S
Datasheet
DB157S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DB-S
Base Product Number DB157
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 106345-DB157S
Ultra Librarian 3D Model Ultra Librarian DB157S CAD Model

Description

DB157S Bridge Rectifier

The DB157S bridge rectifier is known for its high efficiency and reliability, designed primarily for AC to DC conversion in various electrical applications.

  • Applications: LED lighting systems, Inverter circuits, DC motor control.
  • Features: High current capability, Low thermal resistance, Easy to mount.
  • Benefits: Consistent performance, Flexible usage, Enhanced safety measures.

    • Additional Details: With a wide range of applications, the DB157S is a staple in systems requiring stable DC output.
