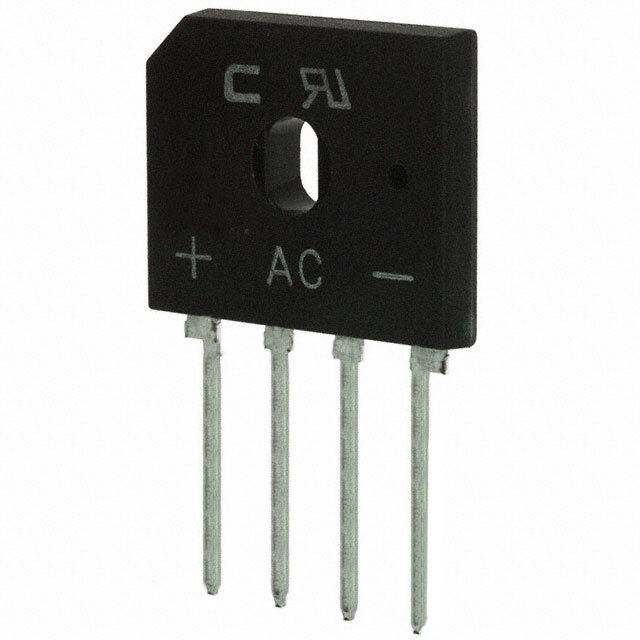

Same model may have multiple batches, images only for reference.
GBU806G SMC Diode Solutions
Same model may have multiple batches, images only for reference.

GBU806G

Part No GBU806G
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 8A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 8 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 8 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package GBU
Base Product Number GBU806
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368002-GBU806G
Ultra Librarian 3D Model Ultra Librarian GBU806G CAD Model

Description

The GBU806G is a bridge rectifier diode from SMC Diode Solutions.

  • Series: GBU
  • Package / Case: 4-ESIP
  • Voltage - Forward (Vf) (Max) @ If: 1.1V @ 8A
  • Current - Reverse Leakage @ Vr: 5µA @ 600V
  • Operating Temperature: -55°C ~ 150°C
  • Current Rating: 8A
  • Diode Type: Single Phase
  • Packaging: Tube
  • Product Status: Active
