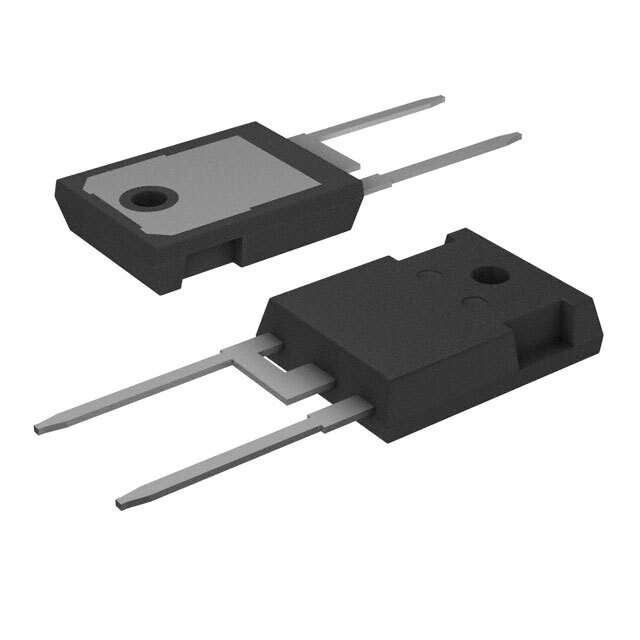

SDUR6030W SMC Diode Solutions
Same model may have multiple batches, images only for reference.

SDUR6030W

Part No SDUR6030W
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 300V 60A TO247AC
Datasheet
SDUR6030W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 1.4 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 45 ns
Current - Reverse Leakage @ Vr 10 µA @ 300 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AC
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SDUR6030
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366914-SDUR6030W
Ultra Librarian 3D Model Ultra Librarian SDUR6030W CAD Model

Description

The SDUR6030W is a standard rectifier diode manufactured by SMC Diode Solutions. It is designed for use in various applications such as power supplies, inverters, and battery chargers.

  • Maximum Reverse Voltage: 300V
  • Average Rectified Current: 60A
  • Forward Voltage Drop: 1.4V @ 60A
  • Recovery Time: Fast (< 500ns)
  • Reverse Recovery Time: 45ns
  • Package: TO-247-2
  • REACH Compliance: Yes
  • ECCN: EAR99
