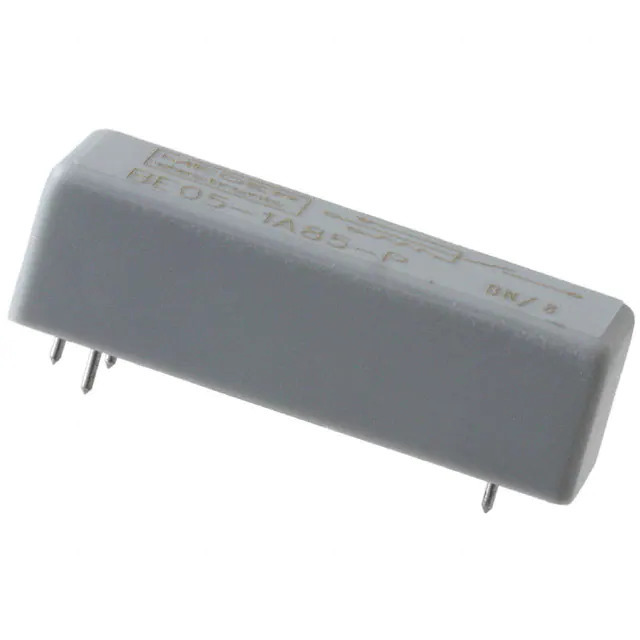

BE05-2A85-P Standex-Meder Electronics
Same model may have multiple batches, images only for reference.

BE05-2A85-P

Part No BE05-2A85-P
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED DPST 1A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Standex-Meder Electronics
Series BE
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 1 A
Switching Voltage 1000VAC, 1000VDC - Max
Coil Current 71.4 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.75 VDC
Operate Time 1 ms
Release Time 0.1 ms
Temperature Range - Operating -20°C ~ 70°C
Contact Material -
Coil Resistance 70 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1357249-BE05-2A85-P
Ultra Librarian 3D Model Ultra Librarian BE05-2A85-P CAD Model

Description

The BE05-2A85-P is a reed relay manufactured by Standex-Meder Electronics.

  • Relay Type: DPST-NO (2 Form A)
  • Contact Rating: 1A
  • Coil Voltage: 5VDC
  • Coil Current: 71.4mA
  • Switching Voltage: 1000VAC and 1000VDC maximum
  • Mounting Type: Through-Hole
  • Sealed: Fully Sealed
  • Must Operate Voltage: 3.5VDC
  • Must Release Voltage: 0.75VDC
  • Operate Time: 1ms
  • Release Time: 0.1ms
