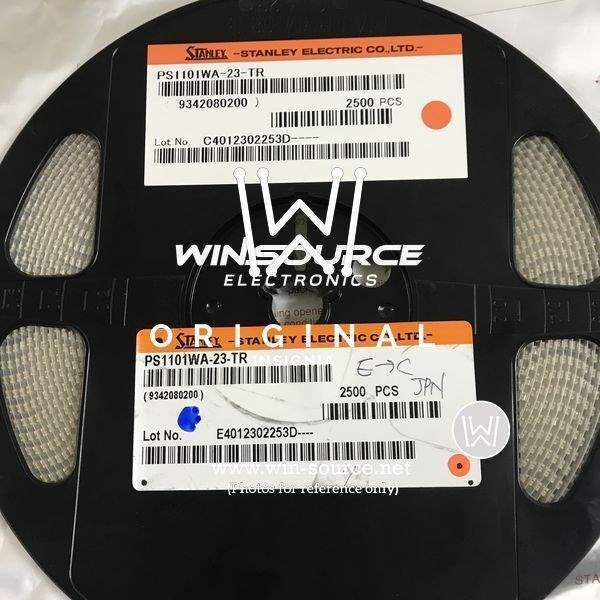

PS1101WA-23-TR label picture PS1101WA-23-TR label picture 2 PS1101WA-23-TR label picture 3
Same model may have multiple batches, images only for reference.
PS1101WA-23-TR label picture PS1101WA-23-TR label picture 2 PS1101WA-23-TR label picture 3
PS1101WA-23-TR label picture PS1101WA-23-TR label picture 2 PS1101WA-23-TR label picture 3
Same model may have multiple batches, images only for reference.

PS1101WA-23-TR

Part No PS1101WA-23-TR
Manufacturer Stanley Electric Co
Catalog Optical Sensors - Phototransistors
Description LED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Stanley Electric Co
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 130°
Maximum Power Dissipation 75mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -30°C to 85°C (TA)
Dimension 2-SMD, No Lead
Win Source Part Number 1089945-PS1101WA-23-TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PS1101WA-23-TR
Country of Origin Thailand
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian PS1101WA-23-TR CAD Model

Description

The PS1101WA-23-TR is a high-quality sensor from Stanley Electric Co.

  • Viewing Angle: 130-degree
  • Wavelength: 880nm
  • Current-Dark (Id): 100nA
  • Maximum Collector Current: 20mA
  • Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 75mW
  • Package: 2-SMD, no lead dimension
  • Packaging: Reel-tr
  • Temperature Range: -30°C to 85°C (TA)
  • Category: Sensors and Transducers
  • Status: Active
