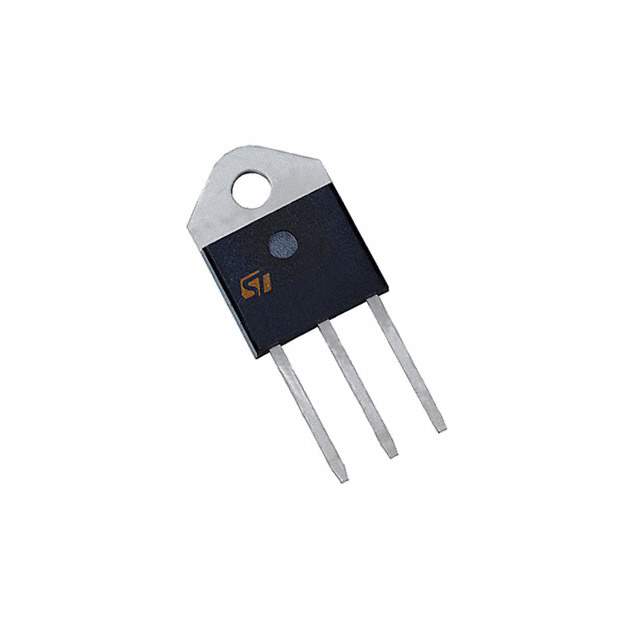

STMicroelectronics BTA26-800CWRG Triac

The BTA26-800CWRG is a high-power, high-voltage Triac manufactured by STMicroelectronics, a leader in semiconductor solutions. This robust electronic component is designed to control AC loads in a variety of applications, offering efficient and reliable performance for both industrial and domestic environments.

The BTA26-800CWRG is capable of handling currents up to 25A and can withstand voltages up to 800V. This makes it an excellent choice for applications requiring high power handling and voltage capabilities, such as motor control circuits, lighting systems, and heating regulation. Its high surge current capabilities ensure that it can handle the demands of applications with high inrush currents.

One of the key features of the BTA26-800CWRG is its insulated tab and ceramic insulator, which provides electrical isolation from the heat sink. This feature not only simplifies the design by reducing the need for additional insulation but also enhances safety by preventing electrical shock. The Triac is housed in a robust RD91 package, which is designed for optimal heat dissipation, ensuring the device operates within its specified temperature range even under high load conditions.

STMicroelectronics has designed the BTA26-800CWRG with a gate trigger voltage (Vgt) of 1.3V, which makes it easy to drive directly from microcontrollers and other logic devices. Additionally, the Triac has a low holding current (Ih) of 50mA, which contributes to its stability in the off-state and prevents unwanted triggering.

The BTA26-800CWRG also features immunity to dV/dt, ensuring that the Triac remains off when exposed to fast voltage transients. This characteristic is particularly important in applications where electrical noise could potentially cause false triggering and erratic operation.

In conclusion, the BTA26-800CWRG from STMicroelectronics is a versatile and durable Triac that is well-suited for managing high power AC loads. Its robust design, combined with high voltage and current capabilities, makes it a reliable choice for designers looking to create efficient and safe control systems.
