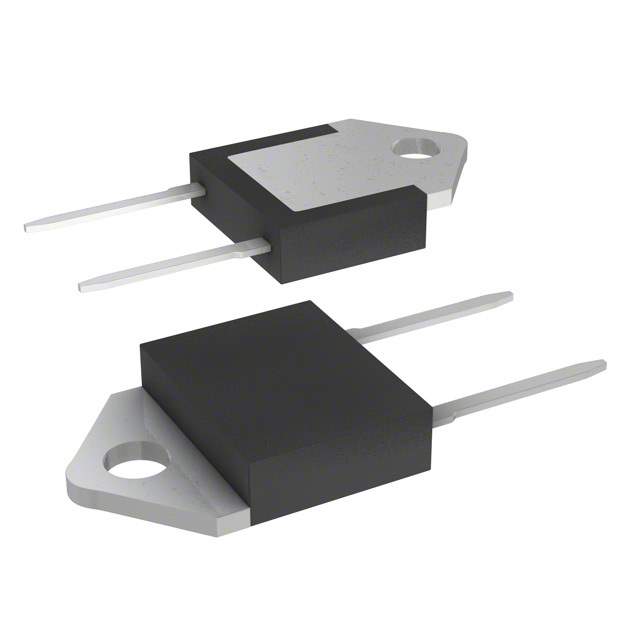

The BYW77PI-200 is a high-performance fast recovery diode designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable components. This diode is specifically engineered to address the demanding requirements of high-frequency rectification and freewheeling applications in switch-mode power supplies and other power conversion systems.

Key Features

• Voltage Rating: The BYW77PI-200 offers a repetitive peak reverse voltage (V<sub>RRM) of 200 volts, making it suitable for a variety of medium voltage applications.
• Current Capacity: With an average forward current (I<sub>F(AV)) of up to 3 amperes at a case temperature of 100°C, it is capable of handling moderate power levels.
• Fast Recovery Time: The device boasts an extremely fast recovery time, typically less than 50 nanoseconds, which minimizes energy loss during the switching process and improves overall efficiency.
• Low Forward Voltage Drop: The low forward voltage drop (V<sub>F) reduces power dissipation and conserves energy, which is critical for power-sensitive designs.
• High Surge Current Capability: It can withstand high surge currents, ensuring robust performance during transient conditions.

Applications

The BYW77PI-200 is ideal for use in a wide range of electronic equipment where high-speed switching is required, such as:

• Switch-mode power supplies (SMPS)
• DC-DC converters
• Power inverters
• Freewheeling diodes in motor control circuits
• Snubber diodes

Reliability and Quality

STMicroelectronics is committed to providing products that meet the highest standards of quality and reliability. The BYW77PI-200 is no exception, as it is manufactured in state-of-the-art facilities with stringent quality control measures in place. It is designed to operate reliably over a wide temperature range and is encapsulated in a robust package that ensures long-term stability and performance.

Environmental Compliance

In line with global environmental standards, the BYW77PI-200 is RoHS compliant, which means it is free from hazardous substances such as lead, mercury, and cadmium. This compliance ensures that the product is suitable for use in environmentally sensitive applications and contributes to the reduction of electronic waste.
