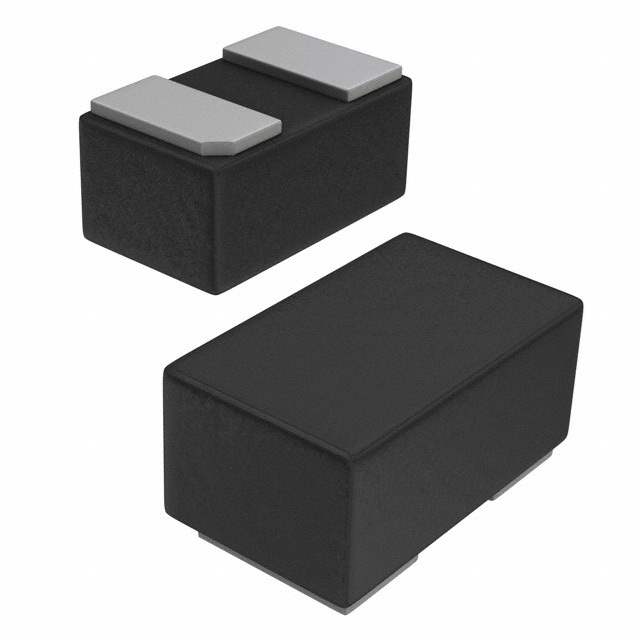

The ESDALC6V1-1BM2 from STMicroelectronics is a state-of-the-art transient voltage suppressor (TVS) designed to protect sensitive electronic equipment from electrostatic discharges (ESD) and other voltage-induced transient events. This device is a crucial component for modern electronics, where the miniaturization of devices increases their susceptibility to ESD and other transient voltage events.

Key Features

• Low Clamping Voltage: The ESDALC6V1-1BM2 offers a very low clamping voltage, which ensures that sensitive circuits are well protected from transient events without being exposed to excessive voltage levels that could cause damage.
• High ESD Protection: With the capability to withstand ESD discharges up to 15 kV (air discharge) and 8 kV (contact discharge) as per the IEC 61000-4-2 standard, it provides robust protection for electronic devices.
• Single Line Protection: This device is designed to protect one data line, making it an ideal choice for applications such as USB power lines, mobile phones, and other portable electronics.
• Low Leakage Current: The ESDALC6V1-1BM2 features an ultra-low leakage current, which helps to preserve battery life in portable applications by minimizing power loss when the device is in standby mode.
• SOT-23-3L Package: The small SOT-23-3L package allows for efficient use of board space, which is particularly beneficial for compact electronic designs.

Applications

The ESDALC6V1-1BM2 is versatile and can be used in a wide range of applications where ESD protection is critical. Some common applications include:

• Smartphones and other portable devices
• USB power lines and data lines
• Computers and peripherals
• Audio and video interfaces
• Microcontroller input/output protection

Reliability and Performance

STMicroelectronics is a global leader in semiconductor solutions, and the ESDALC6V1-1BM2 reflects the company's commitment to providing high-quality, reliable components. The device's robustness and performance make it an essential component for protecting the integrity and longevity of electronic systems against the challenges posed by transient voltage events.
