Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Type Power Management
Function Motor Controller/Driver
Utilized IC / Part VNH7100BAS
Supplied Contents Board(s)
Base Product Number EV-VNH7100
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1341604-EV-VNH7100BAS
Ultra Librarian 3D Model Ultra Librarian EV-VNH7100BAS CAD Model

Description

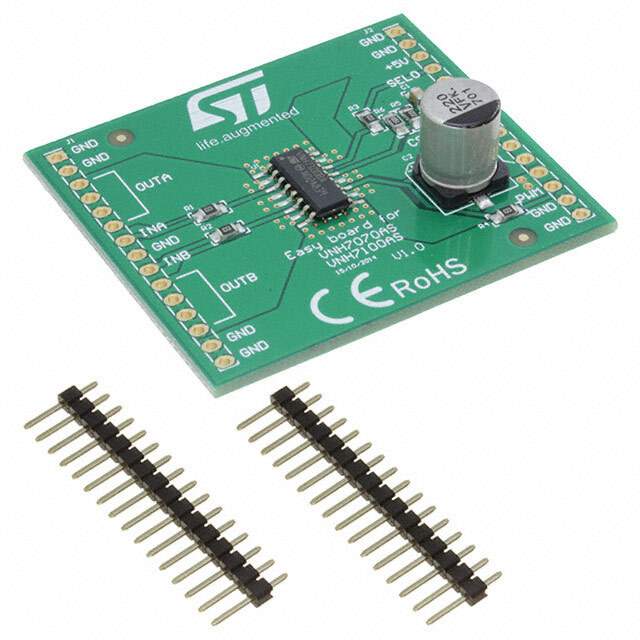

The EV-VNH7100BAS from STMicroelectronics is a state-of-the-art automotive-grade product designed for advanced control of brushed DC motors. This high-precision component is part of STMicroelectronics' VIPowerâ„¢ M0-7 series, which is renowned for its efficiency and reliability in motor driver applications.

The product features an H-bridge motor driver that is capable of driving a high current load with minimal power dissipation. It is equipped with a variety of diagnostic features, including open-load detection, overtemperature shutdown, and overload and short-circuit protection. These features ensure safe operation under a wide range of conditions, making it an ideal choice for safety-critical automotive applications.

One of the key benefits of the EV-VNH7100BAS is its robust design, which is able to withstand the harsh environments typically found in automotive applications. The device operates over a wide voltage range and is protected against reverse battery polarity, thereby enhancing its durability and lifespan.

The EV-VNH7100BAS is also user-friendly, with a straightforward interface that allows for easy integration into existing systems. It supports PWM control for accurate speed regulation, which is essential for applications requiring precise motor control, such as electronic power steering, engine cooling fans, and HVAC blowers.

STMicroelectronics has also taken care to ensure that the EV-VNH7100BAS is compliant with the stringent automotive quality standards, including AEC-Q100 qualification. This certification underscores the product's suitability for automotive electronics and its ability to perform reliably over the long term.

In summary, the EV-VNH7100BAS is a versatile and robust motor driver solution that combines high performance, advanced diagnostics, and ease of use. It exemplifies STMicroelectronics' commitment to providing high-quality, reliable components for the automotive industry.
