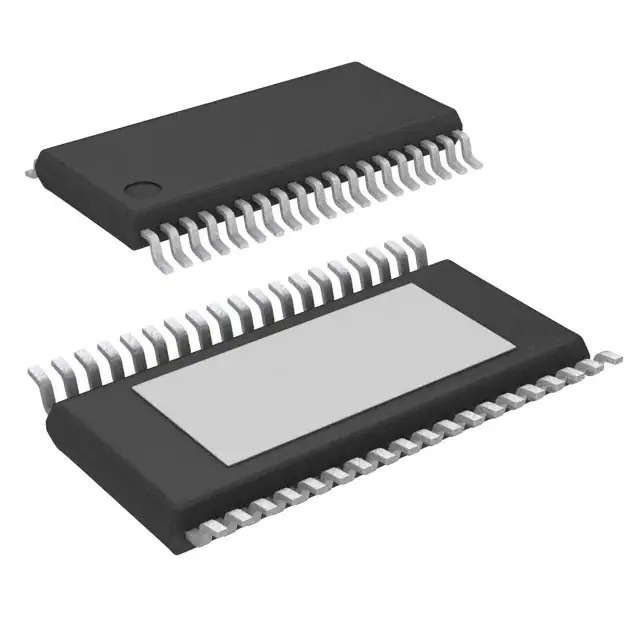

Introducing the L6480H: A Fully-Integrated Solution for Motion Control

The L6480H by STMicroelectronics is an advanced, fully-integrated stepper motor driver designed to offer a sophisticated, yet easy-to-implement solution for a diverse range of motion control applications. This high-performance device integrates a dual full-bridge gate driver, which can deliver up to 3 A of current to the motor, along with a rich set of features that enable precise and efficient control of stepper motors.

Key Features

• Voltage Range: The L6480H operates over a wide voltage range from 8 V to 45 V, making it versatile for various operating conditions and compatible with a broad range of stepper motors.
• Advanced Current Control: It employs an innovative voltage mode control with selectable decay modes, including an advanced predictive current control algorithm that minimizes power dissipation and noise.
• Microstepping: For smooth and accurate motor movement, the L6480H supports up to 1/128 microstepping, allowing for finer resolution and reduced resonance effects.
• Programmability: The device features a set of programmable registers accessible through a standard SPI interface, enabling customization for specific application requirements.
• Comprehensive Protection: It is equipped with a full suite of protection features, including overcurrent, short-circuit, undervoltage lockout, and thermal shutdown to ensure reliable operation under fault conditions.

Applications

With its robust feature set and ease of integration, the L6480H is ideal for a variety of applications, including but not limited to:

• 3D Printers
• CNC Machines
• Robotics
• Textile Machines
• Office Automation Equipment
• Medical and Laboratory Equipment

Whether you're developing a precision motion control system or upgrading existing equipment, the L6480H offers a high degree of flexibility and performance. STMicroelectronics provides comprehensive technical documentation and software tools to support the design and development process, ensuring a smooth path from prototype to production.
