The LD39115J14R from STMicroelectronics is a high-performance, low-dropout voltage regulator designed to deliver a fixed output voltage with outstanding accuracy and stability. This component is part of the LD39115 series, which is renowned for its low power consumption and small form factor, making it an ideal choice for space-constrained and power-sensitive applications.

Key Features

• Output Voltage: The LD39115J14R provides a precise fixed output voltage, ensuring reliable operation for sensitive electronic circuits.
• Low Dropout: The low dropout feature allows for efficient operation even when the input voltage is very close to the output voltage, which is particularly beneficial for battery-powered devices.
• High Accuracy: With its high accuracy output, this voltage regulator maintains consistent performance, which is crucial for maintaining the integrity of the electronic system.
• Low Quiescent Current: The device's low quiescent current minimizes power consumption when in standby mode, thereby extending the battery life of portable devices.
• Thermal Protection: Built-in thermal protection prevents damage to the regulator and the electronic system in the event of overheating.

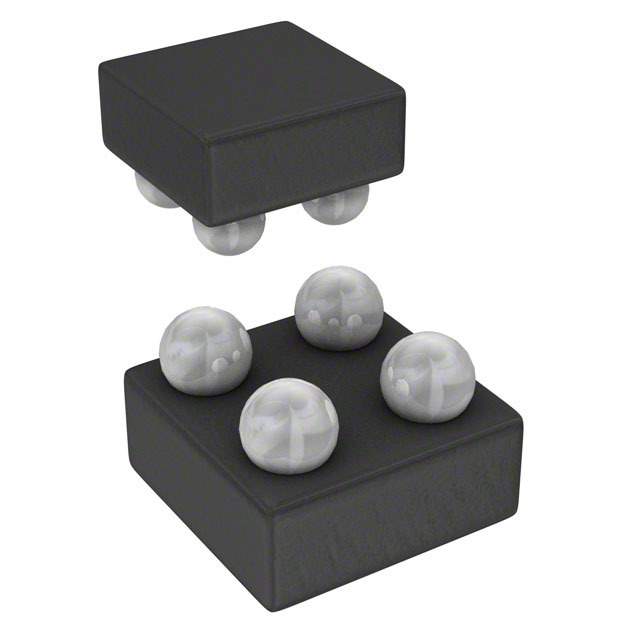

• Package: The LD39115J14R is available in a compact DFN6 (1.2x1.3) package, which is suitable for high-density circuit boards.

Applications

The LD39115J14R is versatile and can be used in a variety of applications. Some of the typical applications include:

• Mobile phones and personal media players
• Wireless LAN and Bluetooth systems
• Portable gaming devices
• GPS receivers
• Healthcare and medical devices

Conclusion

In summary, the LD39115J14R voltage regulator from STMicroelectronics is a highly reliable component that offers energy efficiency, precision, and a small footprint. Whether for commercial products or industrial applications, this regulator ensures stable power supply and contributes to the overall performance and longevity of electronic devices.
