STMicroelectronics LD39130SJ18R Low Dropout Regulator

The LD39130SJ18R is a high-performance, low dropout (LDO) voltage regulator from STMicroelectronics, designed to deliver a stable and precise voltage supply. This component is especially suited for battery-powered devices, as well as for other applications where power efficiency and space constraints are critical considerations.

Key Features:

• Output Voltage: The device provides a fixed output voltage of 1.8V, which is ideal for powering sensitive electronic components that require a stable power source.
• High Accuracy: The output voltage accuracy is maintained within ±2%, ensuring reliable performance for precision-dependent applications.
• Low Dropout: With a low dropout voltage, the LD39130SJ18R can maintain regulation with minimal difference between the input and output voltages, making it efficient for use in scenarios with little headroom.
• Current Capability: It can deliver up to 300mA of output current, catering to a wide range of power requirements for various electronic devices.
• Low Quiescent Current: The quiescent current is as low as 50µA in light load conditions, which significantly extends battery life in portable applications.
• Thermal Protection: The device includes thermal shutdown protection to prevent damage from overheating, enhancing the longevity and reliability of both the regulator and the application it powers.

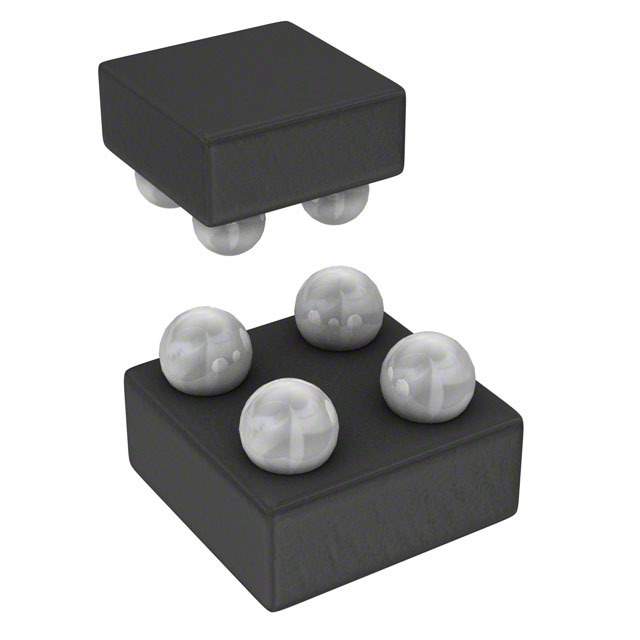

• Package: Available in an ultra-small, flip-chip 4 bump package (1.0 x 1.0 mm), the LD39130SJ18R is designed for space-saving on the PCB.

Applications:

The LD39130SJ18R is versatile and can be used in a variety of applications, including:

• Mobile phones and personal digital assistants (PDAs)
• Wireless LAN and Bluetooth™ systems
• Portable media players and audio devices
• Microcontrollers and digital logic supplies
• Camera and video equipment

In conclusion, the LD39130SJ18R from STMicroelectronics is a robust and efficient solution for applications requiring a compact, accurate, and reliable power supply. Its low dropout performance, combined with a small form factor, makes it a preferred choice for designers looking to optimize their power management systems in space-constrained environments.
