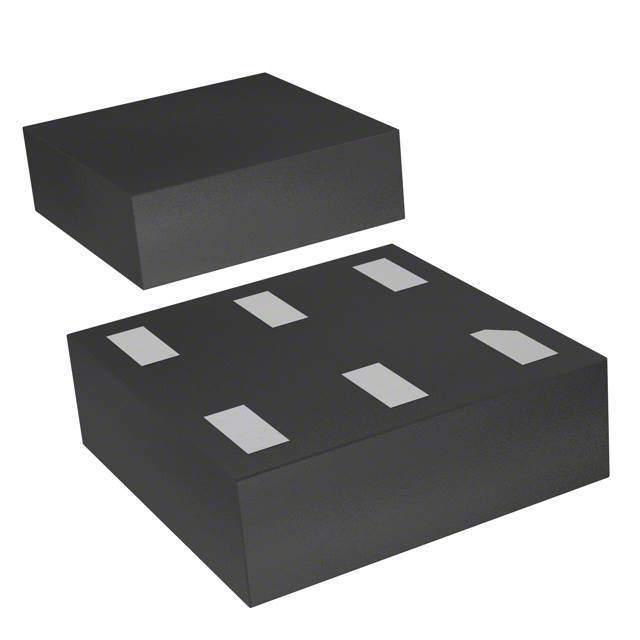

Introducing the LDK120PU12R Low Dropout Regulator from STMicroelectronics

The LDK120PU12R is a stellar example of STMicroelectronics' commitment to delivering high-performance power management solutions. This low dropout (LDO) regulator is designed to provide a stable and reliable power supply for sensitive electronic circuits, ensuring optimal performance even under fluctuating input voltage conditions. With its compact size and high efficiency, the LDK120PU12R is an excellent choice for a wide range of applications, from consumer electronics to industrial systems.

Key Features

• Precise Output Voltage: The LDK120PU12R offers a fixed output voltage of 1.2V, which is ideal for powering low-voltage digital circuits and microcontrollers.
• High Accuracy: With a tight output voltage tolerance, this LDO regulator ensures consistent performance and minimizes the risk of voltage-related issues in your circuits.
• Low Dropout Voltage: The device operates with a very low dropout voltage, which means it can continue to provide a stable output even when the input voltage is close to the output voltage, maximizing efficiency.
• Current Capability: Capable of delivering up to 200mA of output current, the LDK120PU12R can easily handle the requirements of most low-power applications.
• Thermal Protection: Built-in thermal shutdown protects the device from damage due to overheating, enhancing its reliability and lifespan.
• Package Options: The regulator is available in multiple package types, including the ultra-small flip-chip package, which is perfect for space-constrained applications.

Applications

The versatile LDK120PU12R LDO regulator is suitable for a broad array of applications, such as:

• Portable and battery-powered devices
• Microcontroller power supplies
• Wireless communication systems
• Personal electronics
• Medical devices
• Automotive electronics

With its exceptional performance and reliability, the LDK120PU12R from STMicroelectronics is an ideal choice for designers looking to enhance the stability and efficiency of their power management systems. Its small footprint and robust feature set make it a valuable component in any electronic project requiring a steady low-voltage supply.
