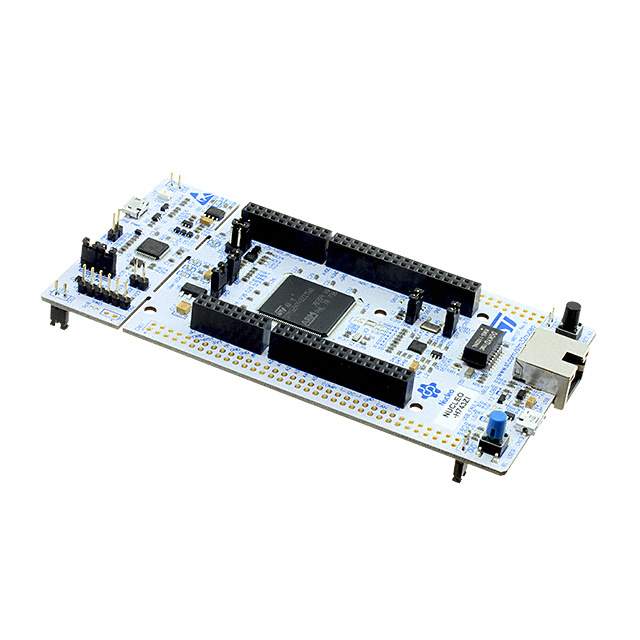

Overview of NUCLEO-H743ZI Development Board

The NUCLEO-H743ZI is a powerful development tool designed by STMicroelectronics to leverage the features of the STM32H743ZI microcontroller. This development board is part of the STM32 Nucleo series, which provides an affordable and flexible way for users to try out new concepts and build prototypes with any STM32 microcontroller, choosing from the various combinations of performance, power consumption, and features.

Key Features

• STM32 microcontroller in LQFP144 package: The board is centered around the STM32H743ZI MCU, which belongs to the high-performance STM32H7 series, featuring the ARM Cortex-M7 core.
• Two types of extension resources: Arduino Uno V3 connectivity and ST morpho extension pin headers provide an easy means of expanding the functionality of the development platform.
• On-board ST-LINK/V2-1 debugger/programmer: This integrated feature simplifies the programming and debugging of the MCU without the need for additional hardware.
• Flexible power-supply options: The NUCLEO-H743ZI can be powered via USB, an external source, or the ST-LINK/V2-1.
• Comprehensive free software libraries and examples: These are available within the STM32Cube MCU Package or STM32CubeH7, as well as direct support from a wide ecosystem, including direct access to ARM® mbed™ online resources.

Connectivity

With its Ethernet compliant connector, the NUCLEO-H743ZI offers network connectivity, which is a significant feature for applications requiring internet access. Additionally, the board includes three user LEDs, two push-buttons (user and reset), and it supports USB OTG.

Development Support

The NUCLEO-H743ZI board fully supports the STM32 software HAL library and has examples for peripheral initialization. Users can take advantage of the comprehensive development ecosystem, including tools from STMicroelectronics, as well as third-party partners, to develop and share their applications.

Target Applications

With its rich set of peripherals, the NUCLEO-H743ZI is suitable for a wide range of application scenarios, including high-performance embedded applications, Internet of Things (IoT) projects, wearable devices, and industrial control systems.

Whether you're a professional engineer, a student, or a hobbyist, the NUCLEO-H743ZI development board is a versatile and cost-effective solution for exploring the capabilities of the STM32H7 microcontrollers and developing innovative applications.
