The PD85006-E is a state-of-the-art RF power transistor developed by STMicroelectronics, a leader in semiconductor solutions. This product is part of ST's LDMOS transistor family, designed to deliver high-performance and reliability for a wide range of applications. The PD85006-E is specifically tailored for high-efficiency RF power amplification, particularly in the VHF and UHF frequency ranges.

Key Features

• High Power Gain: The PD85006-E boasts a high power gain, which is critical for applications requiring efficient signal amplification.
• Wide Frequency Range: With an operational frequency range from 1 to 500 MHz, this transistor is versatile and suitable for various RF applications.
• Thermal Performance: The device is designed with excellent thermal stability, ensuring reliable performance even under high-temperature conditions.
• High Efficiency: The PD85006-E is optimized for high-efficiency operations, making it an energy-saving solution for RF power systems.
• Durability: Constructed with STMicroelectronics’ robust LDMOS technology, the transistor is durable and can withstand the rigors of demanding applications.

Applications

The PD85006-E is ideal for a range of applications, including but not limited to:

• Professional Mobile Radio (PMR)
• RF power amplifiers for FM broadcasting
• Industrial applications and medical equipment
• Amateur radio equipment
• RFID readers and other wireless communication systems

Technical Specifications

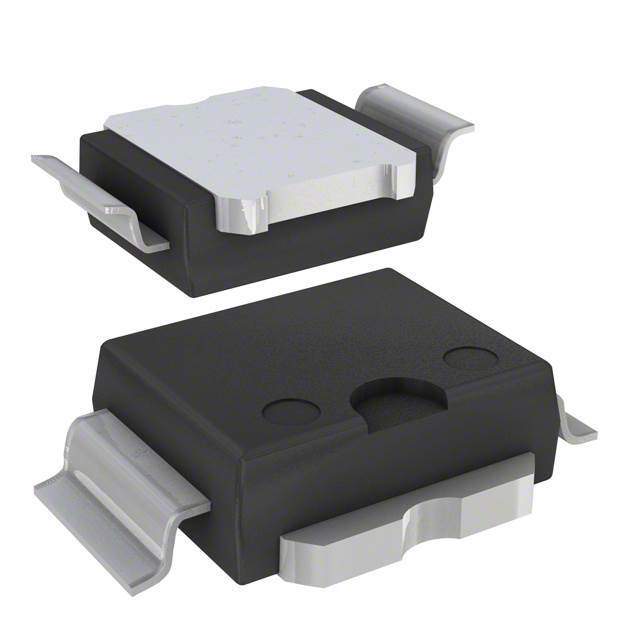

The PD85006-E RF power transistor is encapsulated in a plastic package and designed to offer excellent ruggedness. Some of its notable specifications include:

• Supply Voltage: 12.5 V
• Output Power: 6 W (minimum)
• Power Gain: 14 dB (typical)
• Efficiency: 65% (typical)
• Load Mismatch Tolerance: 10:1 VSWR

For detailed information, including datasheets, application notes, and additional resources, customers are encouraged to visit STMicroelectronics' official website or contact their sales representatives. The PD85006-E represents STMicroelectronics' commitment to providing advanced semiconductor solutions that meet the evolving needs of the RF industry.
