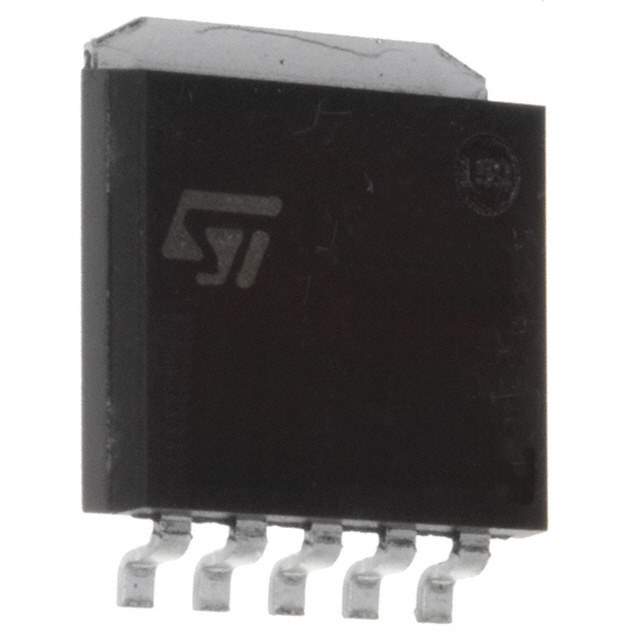

The ST2L05-3300K5 is a low-dropout (LDO) voltage regulator designed by STMicroelectronics, a leader in the semiconductor industry. This regulator is specifically engineered to deliver a stable and precise output voltage of 3.3V, with an output current capability of up to 500mA. Its high efficiency and accuracy make it an excellent choice for sensitive electronic applications requiring a reliable power supply.

Key Features

• Output Voltage: Fixed 3.3V with tight regulation to ensure stable operation.
• Output Current: Capable of delivering up to 500mA, suitable for a wide range of applications.
• Low Dropout Voltage: Minimizes power loss and improves efficiency, especially beneficial when the input voltage is close to the output voltage.
• Thermal Protection: Integrated thermal shutdown mechanism to protect the device from overheating and potential damage.
• Current Limiting: Built-in current limit feature helps prevent damage to the regulator and the load during fault conditions.
• Low Quiescent Current: Reduces power consumption when in standby mode, making it ideal for battery-powered devices.
• Package: Available in a compact SOT-23-5 package, allowing for space-saving designs and easy integration into various circuit layouts.

Applications

The ST2L05-3300K5 voltage regulator is versatile and can be used in a multitude of electronic devices and systems. It is particularly well-suited for portable and battery-powered applications, such as:

• Mobile phones and personal digital assistants (PDAs)
• Portable media players and audio devices
• Wireless communication systems
• Power management modules in embedded systems

With its precise voltage regulation, low power consumption, and compact form factor, the ST2L05-3300K5 from STMicroelectronics is an excellent choice for designers looking to optimize their power supply solutions for efficiency and reliability.
