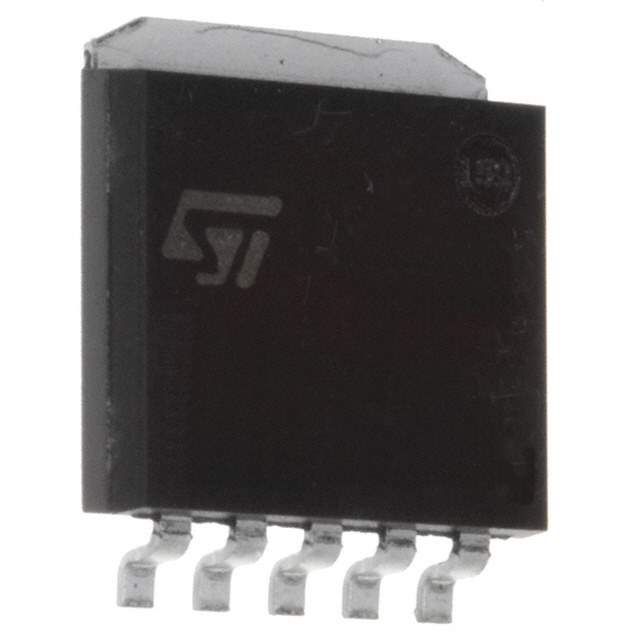

The ST2L05R3300K5 is a versatile and efficient low-dropout (LDO) voltage regulator designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and high-performance components. This LDO regulator is engineered to deliver a stable and reliable power supply in a wide array of electronic applications, making it an ideal choice for designers looking for a combination of performance and compactness.

Key Features

• Output Voltage: The ST2L05R3300K5 provides a fixed output voltage of 3.3V, which is a common requirement for many digital circuits and microcontroller-based systems.
• Output Current: It is capable of delivering up to 500mA of output current, ensuring sufficient power for a variety of low-power applications.
• Low Dropout: With a low dropout voltage, this LDO regulator can maintain output regulation with minimal difference between the input and output voltage, enhancing efficiency in systems with tight voltage margins.
• Thermal Protection: The device includes thermal shutdown protection to prevent damage from overheating, thereby enhancing its reliability and lifespan.
• Current Limiting: Built-in current limiting features protect the regulator and the downstream circuitry from excessive current draw and potential damage.
• Package: The ST2L05R3300K5 comes in a compact SOT-23-5 package, which is well-suited for space-constrained applications.

Applications

The ST2L05R3300K5 is ideal for use in a variety of applications where stable voltage regulation is critical. This includes:

• Battery-powered devices
• Portable media players
• Microcontroller power supplies
• Mobile phones and PDAs
• Peripheral devices

Conclusion

Overall, the ST2L05R3300K5 from STMicroelectronics is a robust and reliable solution for applications requiring a stable 3.3V power supply. Its low dropout performance, combined with protection features and a small footprint, make it a highly attractive option for designers looking to optimize their power management systems.
