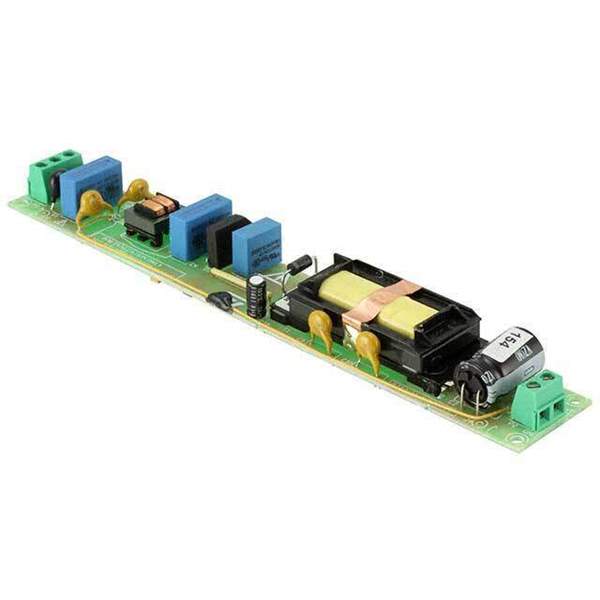

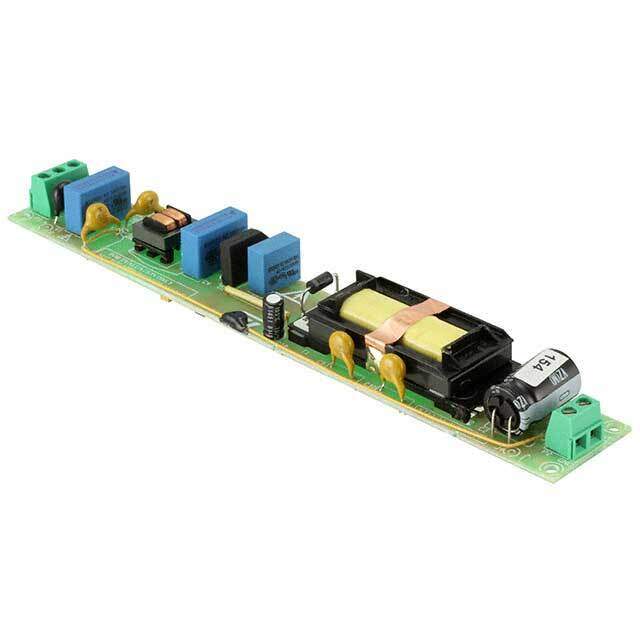

STEVAL-ILL076V1 - LED Driver Evaluation Board from STMicroelectronics

The STEVAL-ILL076V1 is an advanced evaluation board designed by STMicroelectronics to showcase the capabilities of their innovative LED driver solutions. This board is specifically tailored for driving LEDs with high efficiency and precision, making it an ideal platform for developers and engineers to test and evaluate their LED lighting applications.

Key Features:

• Integrated LED Driver: The board features the LED6001 chip, a step-down monolithic power factor-corrected LED driver, capable of providing a constant current to power high brightness LEDs.
• Wide Input Voltage Range: It operates across a broad input voltage range, accommodating various power supplies and ensuring flexibility in different application scenarios.
• Dimming Control: The STEVAL-ILL076V1 supports both analog and digital dimming control, enabling users to adjust the brightness of their LED array to their desired level.
• Thermal Protection: The board is equipped with thermal shutdown protection, safeguarding the LED driver against overheating and ensuring a longer lifespan for the LEDs.
• Easy-to-use: With its user-friendly interface, the evaluation board is straightforward to set up and operate, allowing for quick deployment and testing.
• Flexibility: The board can be used for various LED lighting applications, including indoor and outdoor lighting, architectural lighting, and signal and signage.

Applications:

• General-purpose LED lighting
• Street lighting
• Architectural LED lighting
• Emergency lighting
• Signage and signal lighting

The STEVAL-ILL076V1 evaluation board is a testament to STMicroelectronics' commitment to providing state-of-the-art solutions for the LED lighting industry. By leveraging this board, designers can accelerate their development process, optimize their lighting solutions, and bring high-quality, efficient LED products to market faster.
