Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Current - Output / Channel 500mA
Outputs and Type 1, Non-Isolated
Features Dimmable
Voltage - Input 15V ~ 30V
Supplied Contents Board(s)
Utilized IC / Part LED6000
Base Product Number STEVAL
Other Names 497-16454
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283853-STEVAL-ILL079V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL079V1 CAD Model

Description

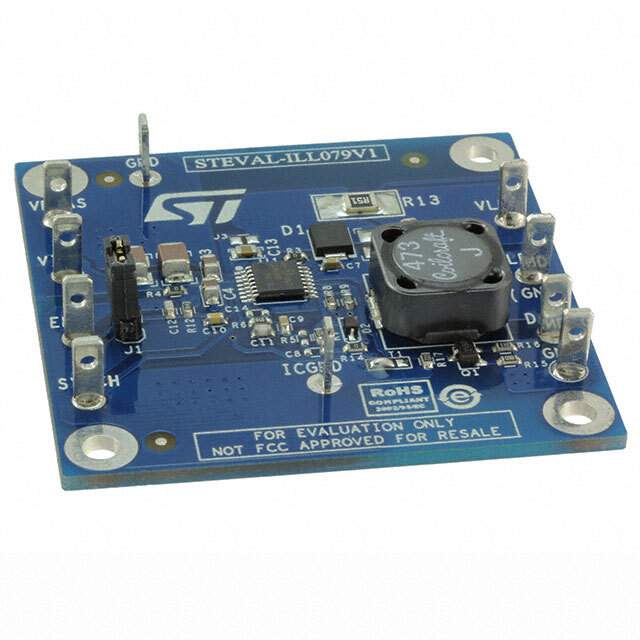

STEVAL-ILL079V1 LED Driver Evaluation Board from STMicroelectronics

The STEVAL-ILL079V1 is an innovative and versatile evaluation board presented by STMicroelectronics, designed specifically for LED lighting applications. This evaluation board showcases the capabilities of the LED6001 step-down monolithic switching regulator, which is optimized for driving high-brightness LEDs with an advanced level of efficiency and reliability.

At the heart of the STEVAL-ILL079V1 is the LED6001 chip, a device that integrates a 60V power MOSFET that makes it suitable for a wide range of input voltages and LED configurations. The board is engineered to handle an input voltage range from 6.5V to 48V, making it ideal for applications in industrial lighting, emergency lighting, and general-purpose LED lighting systems that require a constant current for optimal performance.

The LED6001 is equipped with a variety of features to ensure the protection and longevity of the LED array, including overvoltage protection, overcurrent protection, and thermal shutdown. Additionally, the board includes an adjustable output current that can be set via a resistor, providing flexibility to match the needs of a specific LED load.

One of the key advantages of the STEVAL-ILL079V1 is its ease of use. The evaluation board comes with all necessary components pre-assembled, allowing designers and hobbyists to quickly set up and test their LED solutions. It also includes connectors for easy interfacing with external control and power circuits. The compact size of the board ensures it can be integrated into a variety of housing designs without taking up excessive space.

The STEVAL-ILL079V1 also supports PWM dimming, which is an essential feature for applications that require adjustable light intensity. This functionality enables users to control the brightness of the LEDs with high precision, enhancing the user experience and allowing for energy savings by adjusting the light output according to the requirements of the application.

In summary, the STEVAL-ILL079V1 evaluation board from STMicroelectronics is an excellent tool for developers looking to create efficient and reliable LED lighting systems. Its robust design, combined with the feature-rich LED6001 regulator, makes it a go-to solution for a wide array of LED driving applications.
