Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.2V
Current - Output 2A
Voltage - Input 2.7V ~ 5.5V
Regulator Topology Buck
Frequency - Switching 1.5MHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part ST1S09I
Other Names -497-6372,1026-STEVAL-ISA046V1,497-6372
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8471.41.0150
Win Source Part Number 1284221-STEVAL-ISA046V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA046V1 CAD Model

Description

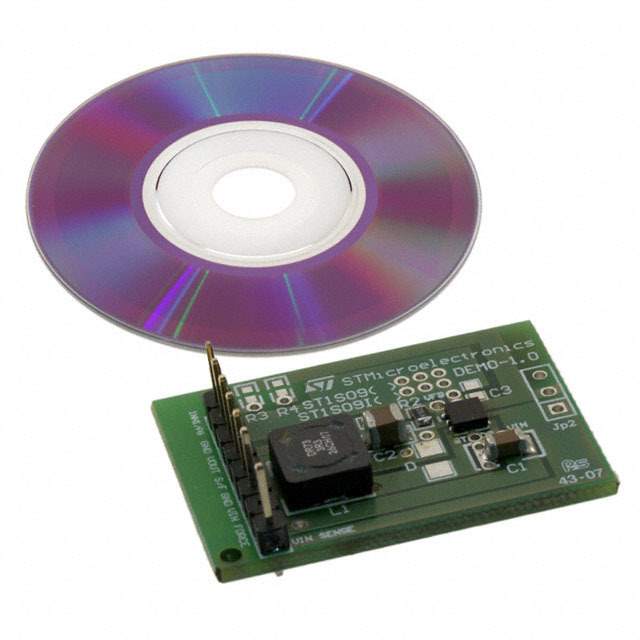

STEVAL-ISA046V1 Evaluation Board from STMicroelectronics

The STEVAL-ISA046V1 is a highly efficient evaluation board designed by STMicroelectronics, tailored for those looking to test and assess the capabilities of the advanced L7986A switching regulator. This product is an essential tool for engineers and developers working on power supply solutions for a wide range of applications, including industrial, consumer, and telecommunications equipment.

Key Features

  • High-Efficiency Design: The L7986A regulator on the STEVAL-ISA046V1 board is a step-down monolithic power switching regulator capable of delivering up to 3A of current with excellent efficiency.
  • Wide Input Voltage Range: The board operates over a broad input voltage range from 4.5V to 38V, making it versatile for use in various operating conditions and systems.
  • Adjustable Output Voltage: Users can adjust the output voltage from as low as 0.8V to a maximum determined by the input voltage, ensuring compatibility with a variety of low-voltage circuits.
  • Thermal Protection: The L7986A comes with thermal shutdown protection to prevent damage from overheating, ensuring reliability and longevity of the evaluation board.
  • Under-voltage Lockout: This safety feature prevents the board from operating under insufficient power supply conditions, thus protecting the circuitry.

Applications

The STEVAL-ISA046V1 is suitable for a multitude of applications, including but not limited to:

  • Switching power supplies for consumer electronics
  • Point of Load (PoL) power supplies for servers and telecom systems
  • Battery-powered applications requiring high efficiency
  • Industrial power systems

Design and Development Support

STMicroelectronics provides extensive support for the STEVAL-ISA046V1 evaluation board, including detailed documentation, reference design files, and technical support from their engineering team. This enables developers to rapidly prototype and implement their power supply designs with confidence and ease.

Whether you are looking to prototype a new power supply design or simply evaluate the performance of the L7986A switching regulator, the STEVAL-ISA046V1 evaluation board is an indispensable asset for your development toolkit.
