Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Isolated
Power - Output 150 W
Voltage - Output 12V
Current - Output 12.5A
Voltage - Input 90 ~ 264 VAC
Regulator Topology Resonant
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part L6563H, L6699, SRK2000
Other Names 497-14888
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284296-STEVAL-ISA143V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA143V1 CAD Model

Description

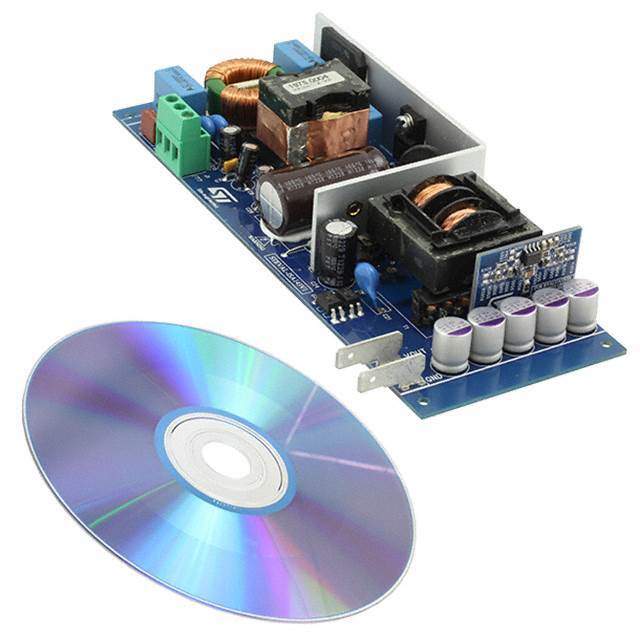

The STEVAL-ISA143V1 is a highly efficient and feature-packed evaluation board from STMicroelectronics designed for power management applications. This evaluation board is based on the L7987, a high-performance 61 V, 3 A step-down switching regulator with a wide input voltage range and reduced power consumption, making it ideal for a variety of industrial, consumer, and telecommunication applications.

Key Features

  • High Efficiency: The L7987 regulator provides a high efficiency of up to 95%, which is crucial for minimizing heat generation and improving system reliability.
  • Wide Input Voltage Range: With an input voltage range from 4.5 V to 61 V, the STEVAL-ISA143V1 is versatile and can accommodate a wide range of supply voltages.
  • Adjustable Output Voltage: The output voltage can be adjusted from 0.8 V to VIN, allowing for great flexibility in application design.
  • High Switching Frequency: The L7987 allows for a switching frequency up to 1 MHz, which enables the use of small-sized filtering components, thus reducing overall board space.
  • Thermal Protection: The board comes with thermal shutdown protection to prevent damage from overheating.

Applications

The STEVAL-ISA143V1 is suitable for a range of applications, including but not limited to:

  • Industrial power supplies
  • Consumer electronics
  • Telecommunication devices
  • Computer peripherals
  • Networking equipment

Design and Support

The evaluation board is designed to facilitate the testing and development of circuits using the L7987 regulator. It includes features such as an enable pin for power sequencing, soft-start, and an overcurrent protection circuit. The STEVAL-ISA143V1 is supported by comprehensive documentation, including schematics, a bill of materials, and application notes, which helps to accelerate the design process and reduce time to market.
