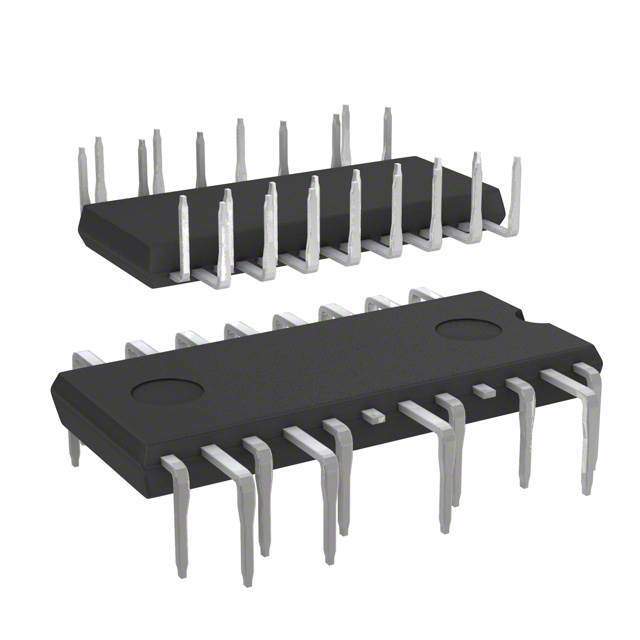

STGIPN3H60-H - Intelligent Power Module by STMicroelectronics

The STGIPN3H60-H is a cutting-edge Intelligent Power Module (IPM) designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This module is a part of the SLLIMM™-nano series, which stands for Small Low-Loss Intelligent Molded Module, an advanced product family that provides a compact and high-performance solution for driving three-phase motor systems.

Key Features

• High Voltage Capability: The STGIPN3H60-H is rated for a maximum operating voltage of 600V, making it suitable for a wide range of industrial and consumer applications that require high voltage operations.
• Current Rating: This module is capable of delivering up to 3A of output current, ensuring efficient power handling for motor drives and other power-intensive tasks.
• Low-loss IGBT Technology: It utilizes advanced IGBT technology with low conduction and switching losses, which enhances overall efficiency and performance.
• Built-in Bootstrap Diodes: Integrated bootstrap diodes with dedicated high-voltage capacitors are included for the high-side gate drive, simplifying the circuit design and reducing external component counts.
• Comprehensive Protection Features: The module is equipped with features such as over-temperature and over-current protection, ensuring safe operation and longevity of the device.
• Compact and Robust Package: The STGIPN3H60-H comes in a highly insulated package with a low thermal resistance, which allows for efficient heat dissipation and a smaller footprint on the PCB.

Applications

The STGIPN3H60-H is ideal for a variety of applications where efficient and reliable motor control is required. These include:

• Home appliances such as washing machines and refrigerators
• Fans and HVAC systems
• Small electric drives and pumps
• General-purpose inverters

Design Support

STMicroelectronics provides extensive design support for the STGIPN3H60-H, including application notes, reference designs, and simulation tools. This support helps designers to reduce time-to-market and ensure optimal performance in their applications.

In summary, the STGIPN3H60-H from STMicroelectronics is a powerful and reliable solution for designers looking to implement advanced motor control systems with minimal design complexity and maximum efficiency.
