STH310N10F7-6 Power MOSFET by STMicroelectronics

The STH310N10F7-6 is a highly efficient N-channel Power MOSFET designed and manufactured by STMicroelectronics, a global semiconductor leader known for its advanced and innovative electronics solutions. This power MOSFET is part of ST's STripFET F7 series, which aims to provide high-performance power conversion in a wide range of applications.

With a robust and rugged design, the STH310N10F7-6 features a maximum drain-source voltage (V<sub>DS) of 100V, making it suitable for high voltage operations. Its low on-state resistance (R<sub>DS(on)) of just 3.1 mΩ at V<sub>GS = 10V ensures high efficiency and reduced power losses during operation, which is critical for energy-sensitive designs.

This Power MOSFET is capable of handling continuous drain currents (I<sub>D) up to 180A, providing ample current for demanding applications. The device is also characterized by an excellent figure of merit (FOM), which is a measure of its switching performance and conduction losses, making it an ideal choice for high-frequency power switching and synchronous rectification in computing and telecom power supplies.

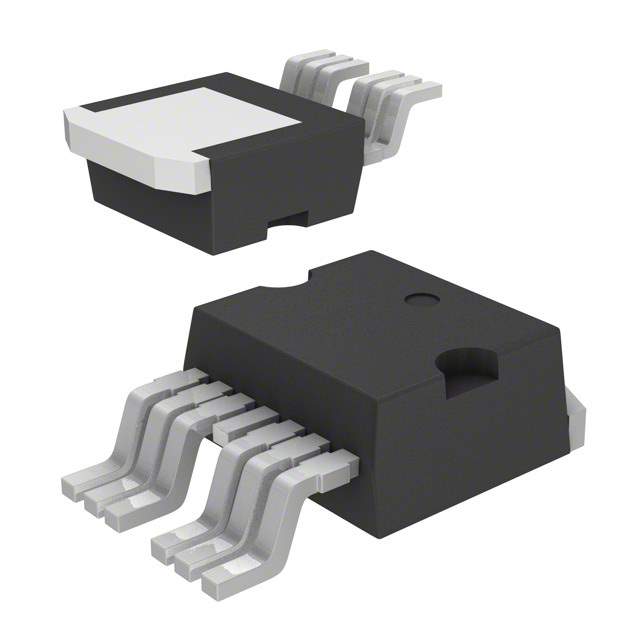

The STH310N10F7-6 is housed in an H2PAK-6 package, which offers a compact footprint while still ensuring good thermal performance. This package is optimized for use in a variety of environments and mounting scenarios, including surface mount technology (SMT) processes.

Key features of the STH310N10F7-6 include:

• 100V drain-source voltage (V<sub>DS)
• Low on-state resistance (R<sub>DS(on)) of 3.1 mΩ
• High continuous drain current (I<sub>D) of 180A
• Excellent power efficiency and thermal performance
• Robust and reliable H2PAK-6 package

With these features, the STH310N10F7-6 is perfectly suited for a range of power applications, including DC-DC converters, motor drives, and other high-performance power management systems that require high efficiency, reliability, and thermal management.

STMicroelectronics' commitment to environmental sustainability is evident in the STH310N10F7-6, which is designed to meet the stringent requirements of the RoHS directive, ensuring minimal environmental impact.
