The STL8N65M5 is a state-of-the-art N-channel Power MOSFET presented by STMicroelectronics, renowned for its excellence in semiconductor technology. This device is a part of the MDmesh™ M5 series, which is known for its outstanding efficiency and performance in high-voltage power applications. The STL8N65M5 is designed with a focus on minimizing on-resistance and gate charge to ensure high efficiency in power conversion applications.

With a voltage rating of 650 V, the STL8N65M5 is well-suited for a variety of applications that require high voltage capabilities, such as switch-mode power supplies, LED lighting, welding equipment, and solar inverters. Its low on-resistance of just 0.65 Ω typ. ensures reduced conduction losses, making it an excellent choice for high-efficiency power designs.

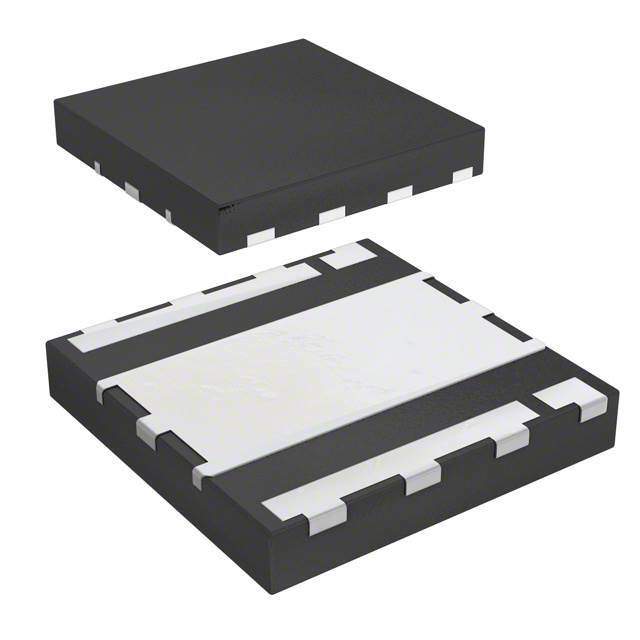

The device can handle continuous currents up to 7 A, providing ample headroom for most medium-power applications. It is encapsulated in a compact PowerFLAT™ 5x6 package, which not only saves space on the PCB but also enhances thermal performance due to its exposed die pad design. This package is optimized for efficient heat dissipation, ensuring reliable operation even under high power conditions.

STL8N65M5 incorporates the latest advancements in MDmesh™ technology, which utilizes a proprietary vertical structure that optimizes the device's on-state resistance per area. This technology also contributes to reduced switching losses, making the MOSFET ideal for high-frequency applications.

Key features of the STL8N65M5 include:

• 650 V drain-source breakdown voltage (V<sub>DS)
• 0.65 Ω typical on-resistance (R<sub>DS(on))
• 7 A continuous drain current (I<sub>D)
• Low gate charge and capacitances for faster switching
• 100% avalanche tested for guaranteed reliability
• High dv/dt capability for robustness against harsh conditions

Overall, the STL8N65M5 from STMicroelectronics represents a fusion of high voltage capability, low on-resistance, and high current handling, all packed into a space-saving and thermally efficient package. It is an ideal choice for designers looking to enhance power efficiency and reliability in their next-generation electronic designs.
