Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer STMicroelectronics
Series STM32F2
Board Type Evaluation Platform
Type MCU 32-Bit
Core Processor ARM Cortex-M3
For Use With/Related Products STM32 F2
Mounting Fixed
Contents Board(s), LCD
Win Source Part Number 1261373-STM3220G-EVAL
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name STM3220G-EVAL
Introduction Date March 24, 2011
ECCN 5A991.b.1
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian STM3220G-EVAL CAD Model

Description

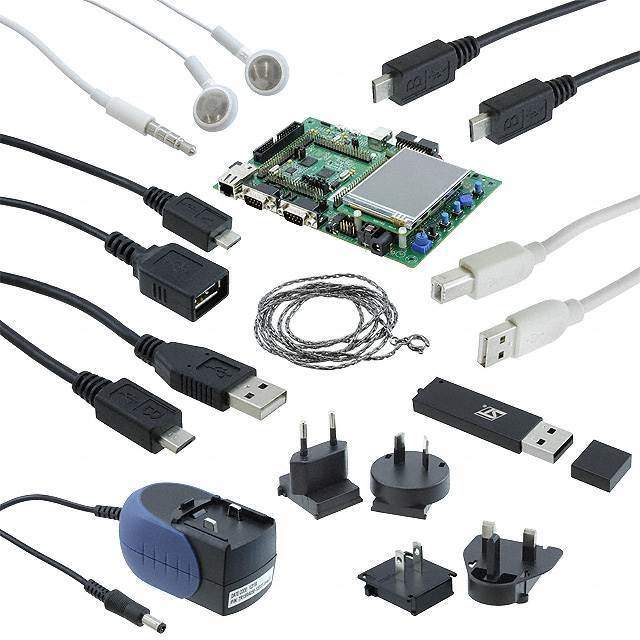

STM3220G-EVAL Evaluation Board by STMicroelectronics

The STM3220G-EVAL evaluation board is a comprehensive development platform designed by STMicroelectronics to demonstrate the capabilities of the STM32 F2 series of high-performance microcontrollers. This state-of-the-art platform is an ideal starting point for developers looking to explore the advanced features of the STM32F207IGH6 MCU and create sophisticated applications in a variety of fields, including industrial control, medical equipment, and consumer electronics.

Key Features:

  • High-performance microcontroller: At the heart of the STM3220G-EVAL is the STM32F207IGH6 microcontroller, which boasts a 32-bit ARM Cortex-M3 core, operating at a frequency of up to 120 MHz. Its high-speed embedded memories (Flash memory up to 1 Mbyte and RAM up to 128 Kbytes) and extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix, make it a versatile choice for a wide range of applications.
  • Comprehensive connectivity: The evaluation board offers an array of connectivity options, including Ethernet, USB OTG, CAN, and other I/Os, ensuring that developers can integrate the board into a wide range of systems and take full advantage of the STM32F207's communication features.
  • Rich set of peripherals: Equipped with a touchscreen TFT LCD, audio DAC and codec, RS-232/RS-485 communication, IrDA transceiver, SPI Flash memory, and more, the STM3220G-EVAL provides a rich set of peripherals to support comprehensive application development.
  • Flexible power supply options: The board can be powered through various means, including an external power supply or Power over Ethernet (PoE), offering flexibility in different development and application scenarios.
  • Extension connectors: For further expansion, the board includes Pmod compatible connectors, allowing for easy plug-in of additional hardware modules and components.
  • Software development support: STMicroelectronics provides a range of software examples and a comprehensive development ecosystem, including the STM32Cube software suite, to support the STM3220G-EVAL. This ensures that developers can quickly begin developing and testing their applications.

With its rich set of features and extensive support for connectivity and peripherals, the STM3220G-EVAL evaluation board is an excellent tool for prototyping and developing advanced applications, providing developers with a flexible and powerful environment to bring their innovative ideas to life.
