STM32F446ZCT6JTR Microcontroller Overview

The STM32F446ZCT6JTR is a high-performance microcontroller from STMicroelectronics, which is part of the STM32F4 series, known for its advanced architecture, peripherals, and features that cater to a wide range of applications. This device is based on the ARM Cortex-M4 processor with FPU (floating-point unit), which operates at frequencies of up to 180 MHz. The STM32F446ZCT6JTR is designed to deliver a perfect balance between performance, power consumption, and value, making it a top choice for embedded systems developers.

Key Features

• Core: ARM Cortex-M4 with FPU and DSP instructions, running at up to 180 MHz.
• Memory: Equipped with 512 KB of Flash memory and 128 KB of SRAM, which is ample for complex applications.
• Connectivity: Offers a range of communication interfaces including USB OTG, CAN, SPI, I2C, USART, SDIO, and more.
• ADCs: Features three 12-bit analog-to-digital converters with up to 24 channels and up to 2.4 MSPS in triple interleaved mode.
• Timers: Advanced-control timers, general-purpose timers, basic timers, and a SysTick timer for time-related operations.

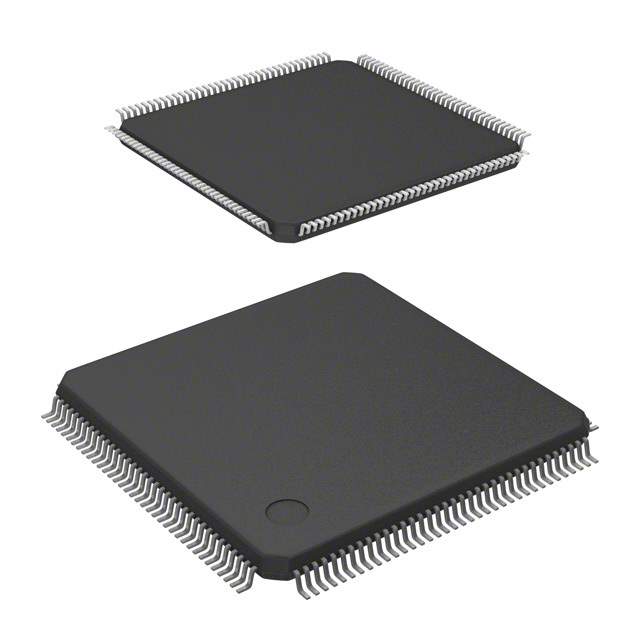

• Package: Available in a LQFP144 package, which is suitable for various PCB layouts.

Power Efficiency and Clock Management

The STM32F446ZCT6JTR microcontroller includes a range of power-saving modes, such as Sleep, Stop, and Standby, which help to reduce power consumption in idle or low-activity states. Additionally, the device features an internal voltage regulator and a flexible clock system that supports multiple clock sources and can dynamically adjust the frequency to optimize performance and power use.

Development and Debugging

For development and debugging purposes, the STM32F446ZCT6JTR supports JTAG/SWD interfaces, which provide full access to the Cortex-M4 core. The microcontroller is also compatible with STMicroelectronics' extensive range of development tools, software libraries, and the STM32Cube ecosystem, simplifying the development process and reducing time to market.

Applications

The STM32F446ZCT6JTR is versatile and can be used in a variety of applications, including industrial control systems, motor drives, medical equipment, consumer electronics, and IoT devices. Its robust design and rich set of peripherals enable designers to implement sophisticated control algorithms and interface with a wide range of sensors and actuators.
