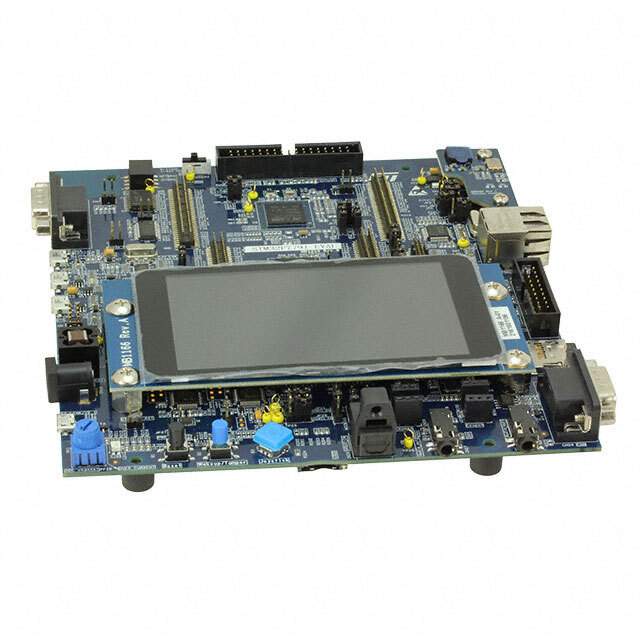

The STM32F769I-EVAL Evaluation Board is a high-end development platform that enables users to explore the features and capabilities of the STM32F7 Series microcontrollers, particularly the STM32F769NIH6. Manufactured by STMicroelectronics, this board is designed to facilitate a wide range of applications, including industrial automation, medical equipment, home entertainment, and IoT devices.
At the heart of the STM32F769I-EVAL is the STM32F769NIH6 microcontroller, which boasts an ARM Cortex-M7 core with a maximum frequency of 216 MHz. This microcontroller integrates high-performance features such as 2 MB of Flash memory, 512+16+4 KB of RAM, and a rich set of peripherals. Its advanced graphics capabilities, including the Chrom-ART Accelerator™ for enhanced graphic performance, make it ideal for applications with sophisticated user interfaces.
The evaluation board comes equipped with a comprehensive set of connectivity options, including Ethernet, USB OTG, CAN, and camera interface. For audio applications, the board features audio DAC and ADC, S/PDIF RCA input, and stereo headphone output jacks. To support development with real-time applications, the board includes a variety of timers, as well as connectivity to motor control encoder and PWM outputs.
To enhance the user experience, the STM32F769I-EVAL includes a 4-inch QVGA TFT LCD display with a capacitive touch panel. Developers can also utilize the board's expansion connectors compatible with Arduino Uno V3 and ST's proprietary STMod+ and ST Zio connectors, allowing for easy expansion with a wide range of specialized add-on boards.
The evaluation board is supported by a range of software development tools, including STM32CubeMX for initial configuration and STM32CubeIDE for integrated development. It also comes with a comprehensive software HAL library and various packaged software examples, which are particularly useful for accelerating the development process.
Overall, the STM32F769I-EVAL Evaluation Board is a versatile and powerful tool for developers looking to harness the capabilities of the STM32F7 Series microcontrollers for their next innovative project.
