Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer Microchip Technology
Series AVR
Board Type Evaluation Platform
Type MCU 8-Bit
Core Processor AVR
Platform ATmega324PB Xplained Pro
For Use With/Related Products ATmega324PB
Mounting Fixed
Contents Board(s)
Win Source Part Number 769224-ATMEGA324PB-XPRO
Popularity Medium
Supply and Demand Status Limited
Family Name ATMEGA324PB-XPRO
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ATMEGA324PB-XPRO CAD Model

Description

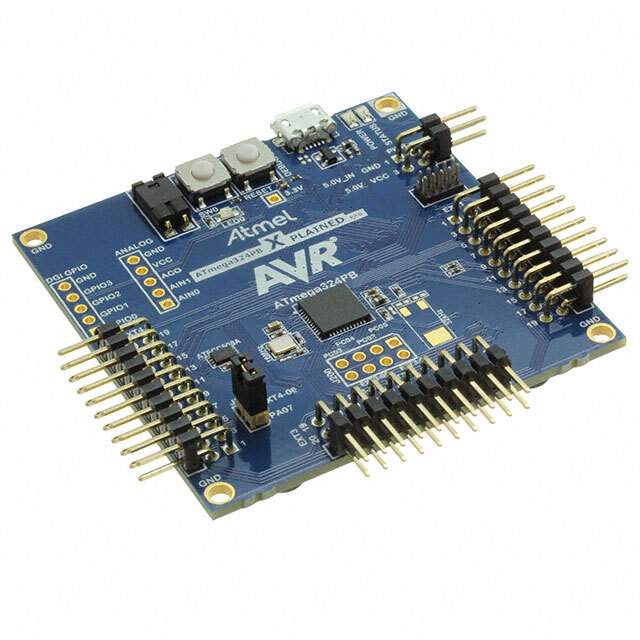

Microchip Technology's ATMEGA324PB-XPRO Development Board

The ATMEGA324PB-XPRO is a highly versatile and feature-rich development board created by Microchip Technology, designed to provide an ideal platform for engineers and hobbyists to explore the capabilities of the ATmega324PB microcontroller. This powerful microcontroller is part of Microchip's renowned AVR® family, known for its ease of use and advanced features.

The development board is equipped with the ATmega324PB MCU, which boasts a wide range of functionalities including 24 KB of in-system self-programmable flash, 1 KB of EEPROM, 2 KB of SRAM, and operates at up to 20 MHz. It also provides full compatibility with a host of extension boards known as Xplained Pro extension kits, which offer additional peripherals and functionalities for a myriad of applications.

With its onboard debugger, the ATMEGA324PB-XPRO eliminates the need for external tools for programming and debugging, streamlining the development process. The board also includes a Virtual COM port that facilitates data transfer over USB, enhancing connectivity options. Further, it features a standardized extension connector, which makes it simple to connect to different hardware interfaces, ensuring a flexible and scalable approach to system development.

Key features of the ATMEGA324PB-XPRO include:

  • ATmega324PB microcontroller
  • Integrated debugger (Atmel Embedded Debugger, or EDBG)
  • Support for Atmel Studio Integrated Development Environment (IDE)
  • USB interface with Virtual COM port and hardware interface support
  • Easy access to all signals on the MCU through two 100 mil headers
  • Additional screw terminals for more robust connections
  • Expandable with Xplained Pro extension kits

Whether you are developing complex embedded systems or simply experimenting with microcontroller capabilities, the ATMEGA324PB-XPRO from Microchip Technology provides a comprehensive and user-friendly platform to bring your ideas to life. Its robust design and extensive support materials, including datasheets, user guides, and application notes, make it an invaluable tool for both novice and experienced developers alike.
