Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM8L EnergyLite
Package Tray
Core Processor STM8
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, SPI, UART/USART
Peripherals Infrared, POR, PWM, WDT
Number of I/O 18
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
RAM Size 1.5K x 8
Supply Voltage - Operating 1.65V ~ 3.6V
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)

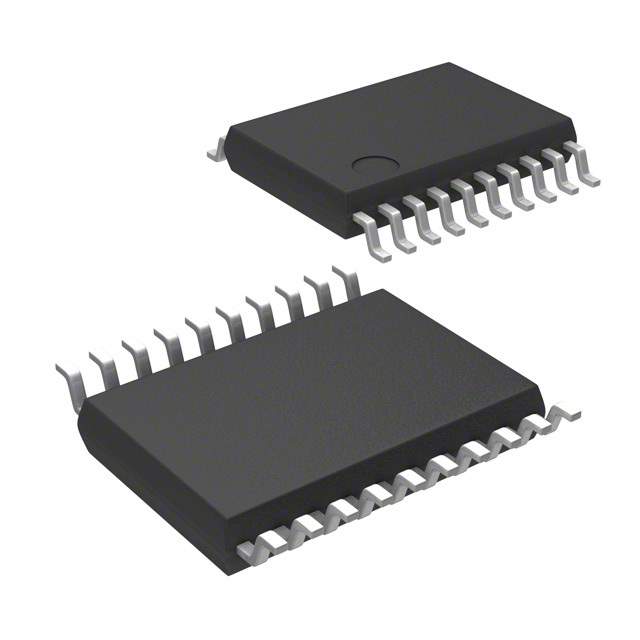

Package / Case 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-TSSOP
Base Product Number STM8
Standard Package 74
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1262053-STM8L101F2P3
Ultra Librarian 3D Model Ultra Librarian STM8L101F2P3 CAD Model

Description

STM8L101F2P3 Microcontroller from STMicroelectronics

The STM8L101F2P3 is a highly-integrated, low-power microcontroller from STMicroelectronics, designed to deliver robust performance in a compact package. Built around an advanced 8-bit core, this microcontroller is ideal for a wide range of applications that require efficient power management and reliable operation in space-constrained environments.

Key Features

  • Advanced STM8 Core: Operating at up to 16 MHz, the STM8 core ensures swift execution of instructions, which is crucial for real-time applications.
  • Memory Capacity: Equipped with 8 Kbytes of Flash program memory, 1 Kbyte of RAM, and 128 bytes of EEPROM, the STM8L101F2P3 offers a balanced mix of storage options for various application requirements.
  • Low Power Consumption: The microcontroller is designed with energy efficiency in mind, featuring multiple low-power modes to reduce power consumption for battery-powered applications.
  • Robust I/O Capabilities: With 20 I/O pins, this MCU provides ample interfacing capabilities, allowing for flexible connection with sensors, actuators, and other peripheral devices.
  • Analog Peripherals: Onboard analog peripherals include a 10-bit analog-to-digital converter (ADC) and a comparator, which expand the MCU's capability to interact with analog signals.
  • Communication Interfaces: The device supports I2C, SPI, and UART communication protocols, enabling it to easily communicate with other microcontrollers, sensors, and external memory.
  • Temperature Range: The STM8L101F2P3 operates over an industrial temperature range from -40°C to +85°C, ensuring reliable performance under extreme conditions.

Applications

The STM8L101F2P3 is suited for a variety of applications, particularly those that require low power consumption and a small form factor. These applications include:

  • Consumer Electronics
  • Battery Management Systems
  • Portable Medical Devices
  • Home Automation
  • Industrial Control Systems
  • Personal Gadgets

With its combination of performance, power efficiency, and versatile I/O options, the STM8L101F2P3 microcontroller from STMicroelectronics is a compelling choice for designers looking to optimize their embedded systems.
